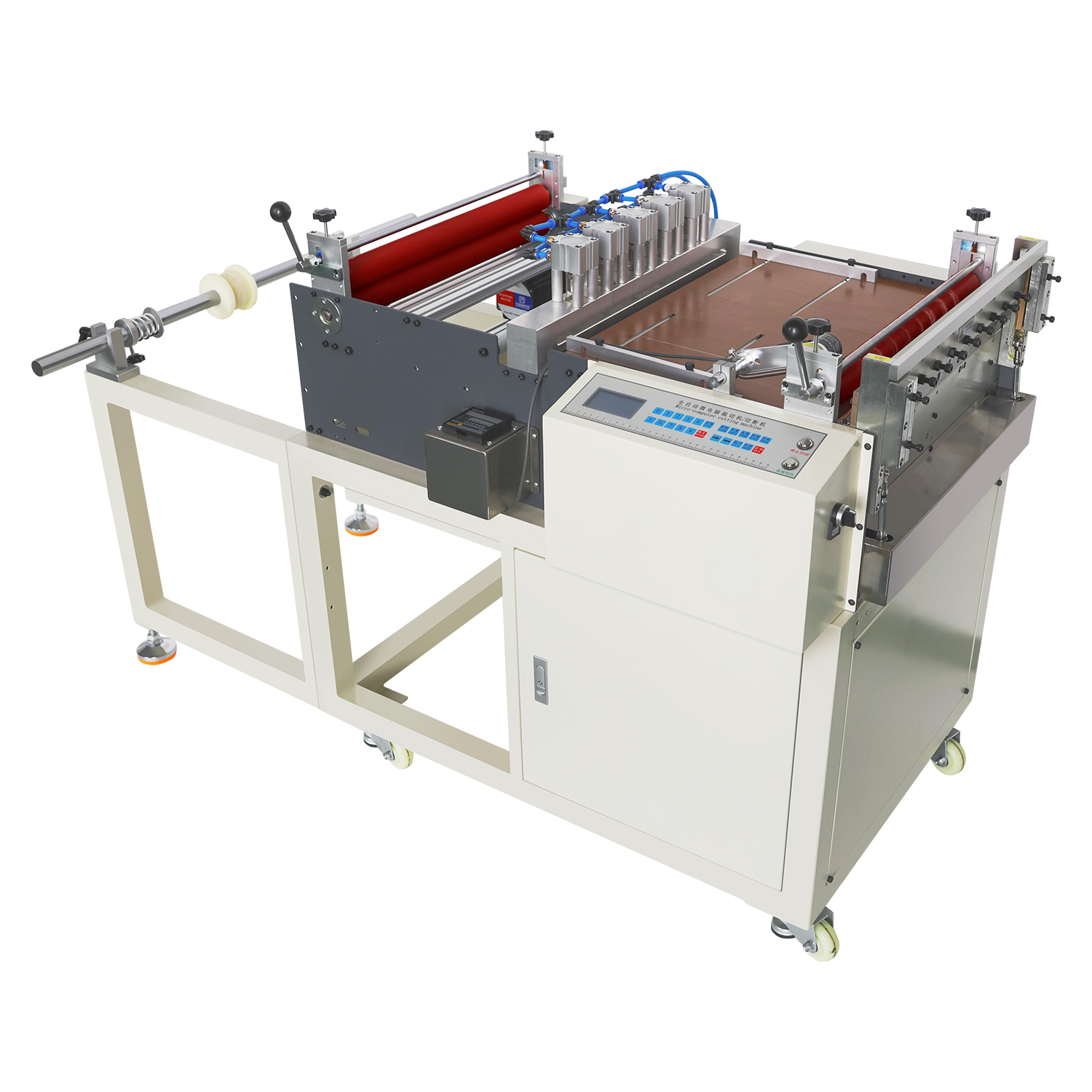

The Roll to Sheet Punching Machine is specially designed for converting roll materials into punched and cut sheets in one continuous process.
It combines automatic feeding, hole punching, and sheet cutting functions, achieving high precision and efficiency.
Driven by a servo control system, the machine ensures stable feeding and accurate punching position.

Model:
HDK-500ZC
Brand:
HDK

roll to sheet punching machine roll to sheet punching machine manufacturer hole punching roll to sheet cutting machine for laminated film punching machine for nonwoven fabric and plastic film punching and sheet cutting machine roll to sheet perforating machine roll to sheet converter aluminum foil punching and sheet cutting paper cutting machine customized punching and cutting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

Roll to Sheet Punching and Cutting Machine for Paper, Film & Nonwoven Materials

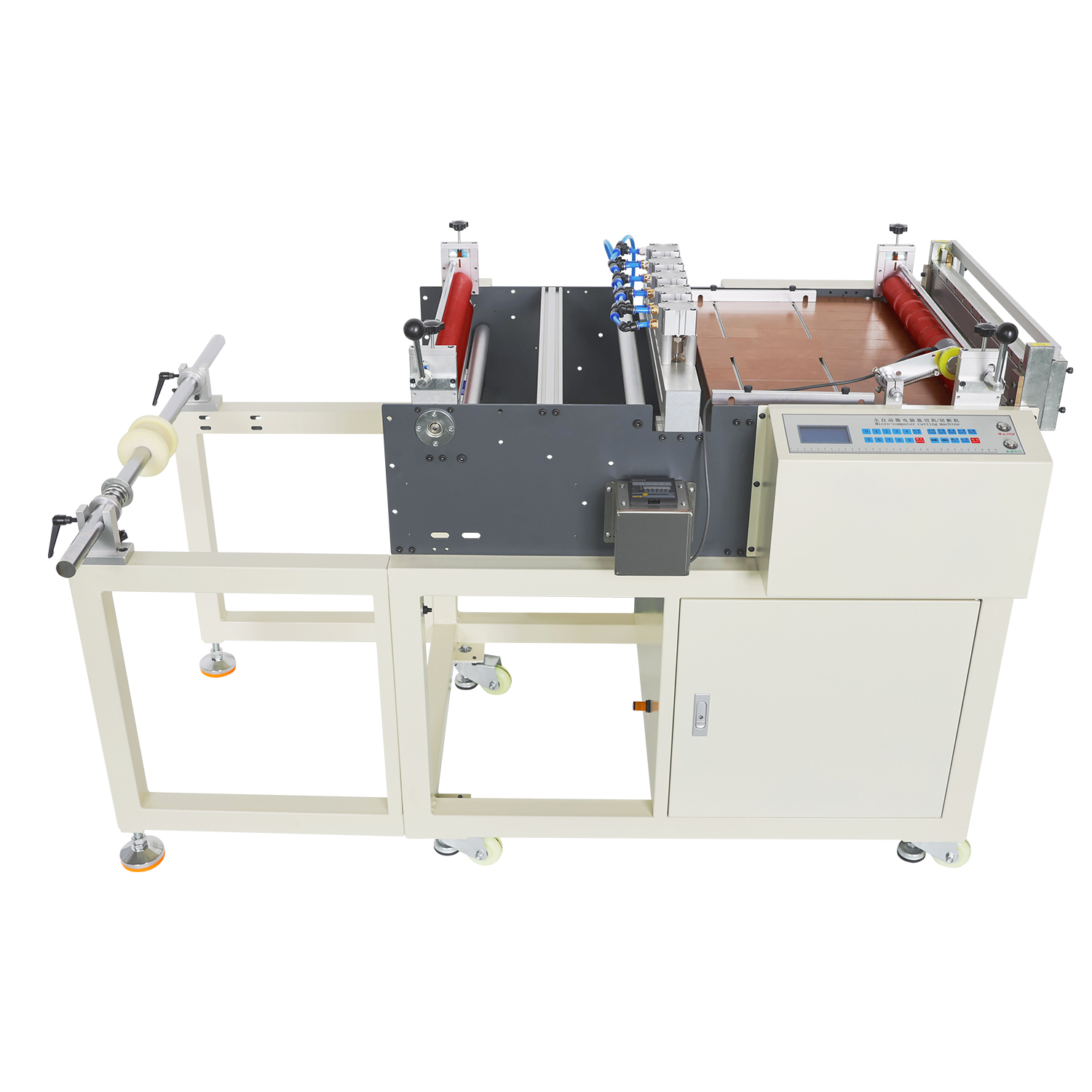

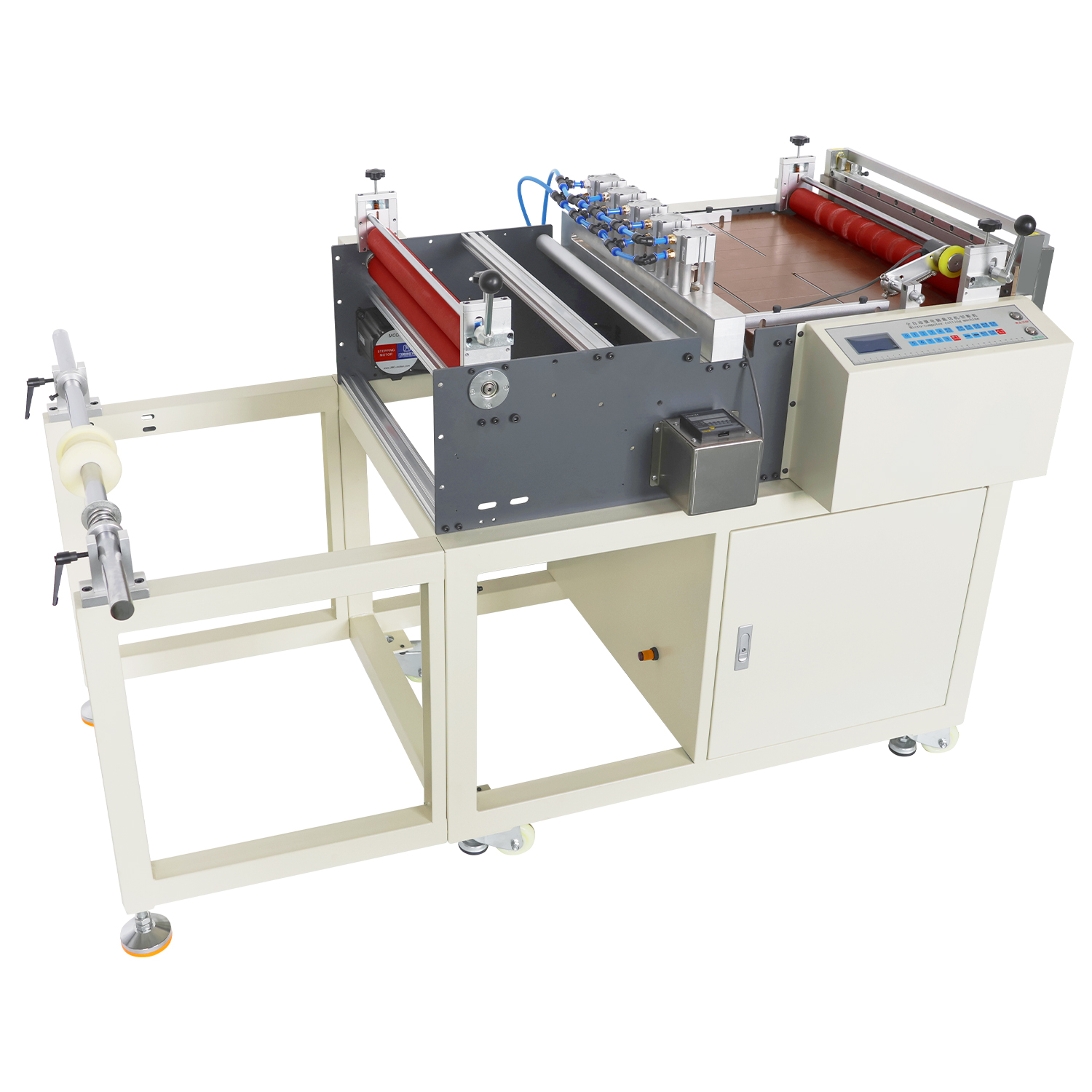

The Automatic Roll to Sheet Punching Machine is designed for continuous punching and sheet cutting from roll materials.
It integrates automatic feeding, servo-controlled punching, and precise sheet cutting into a single process, ensuring stable performance and high productivity.
The punching position and sheet length can be easily adjusted on the touch screen, offering great flexibility for different materials and patterns.

This machine is ideal for paper, PET film, PVC film, nonwoven fabric, laminated film, and kraft paper, widely used in packaging, printing, and label industries.
With its high precision, low waste, and easy operation, it helps manufacturers improve production efficiency and product quality.

roll to sheet punching machine

Model

HDK-500ZC

Voltage

110/220V

Fequency

50/60Hz

Cutting width

500mm

Cutting length

0.1-99999.9mm

Cutting speed

30-40 meters per min

Cutting precision

+-0.1-0.3mm

Feeding motor

Stepper motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Net weight

230kg

Gross weight

250kg

Packing size

1020*1180*1170mm

Machine size

950*800*1030mm

+8615711828157

Automatic roll to sheet punching and cutting machine with servo control and high-precision hole punching. Suitable for paper, PET, PVC, nonwoven and laminated materials. Ideal for packaging, label, and filter applications.

Introduction

Loading Material Part

Position the roll onto the alloy bar, ensuring the roll core is securely seated. Insert plugs into both ends of the roll core to hold it in place. The system is designed with integrated springs and limiters, which work together to apply and maintain optimal tension on the roll, ensuring smooth operation and preventing any slack or instability during the process.

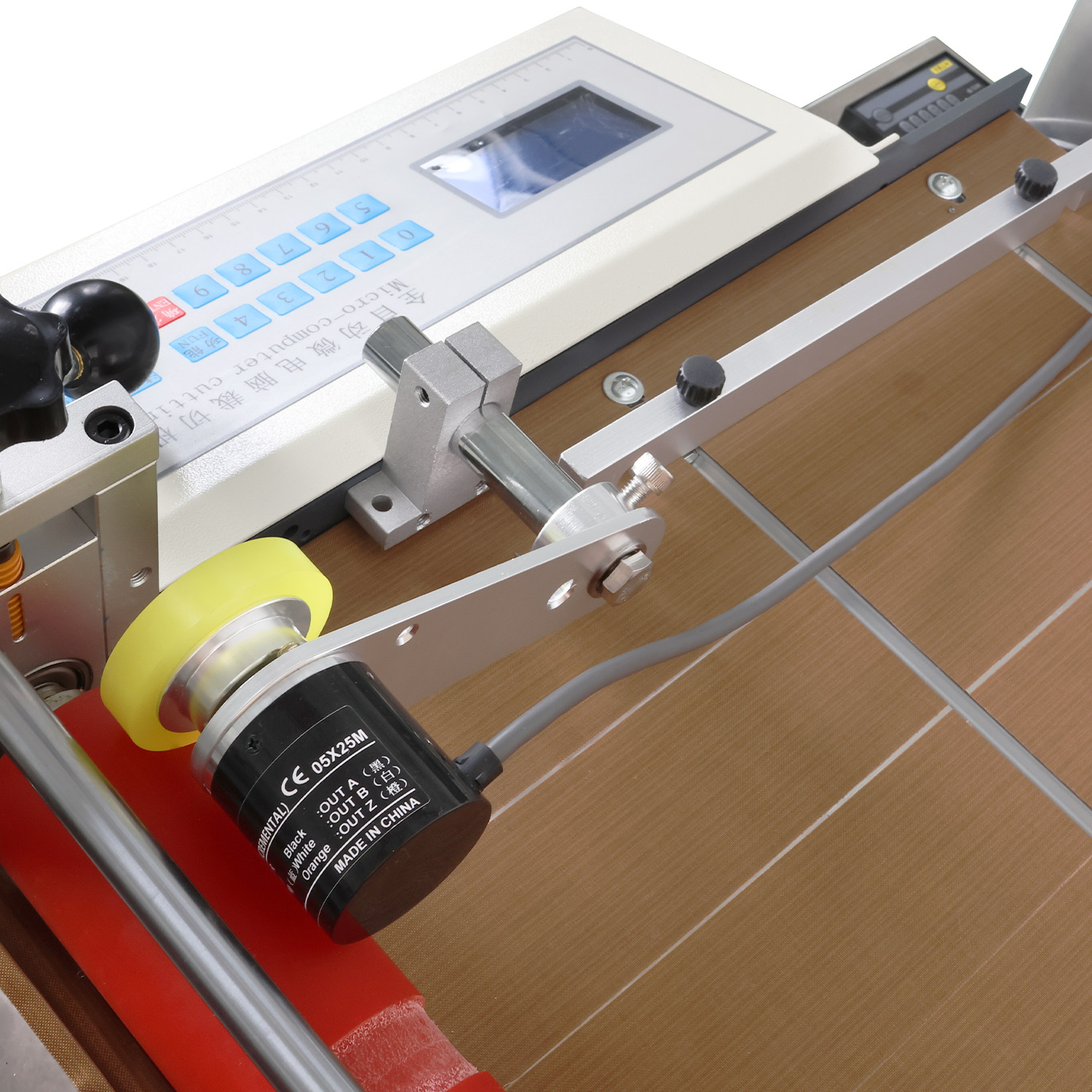

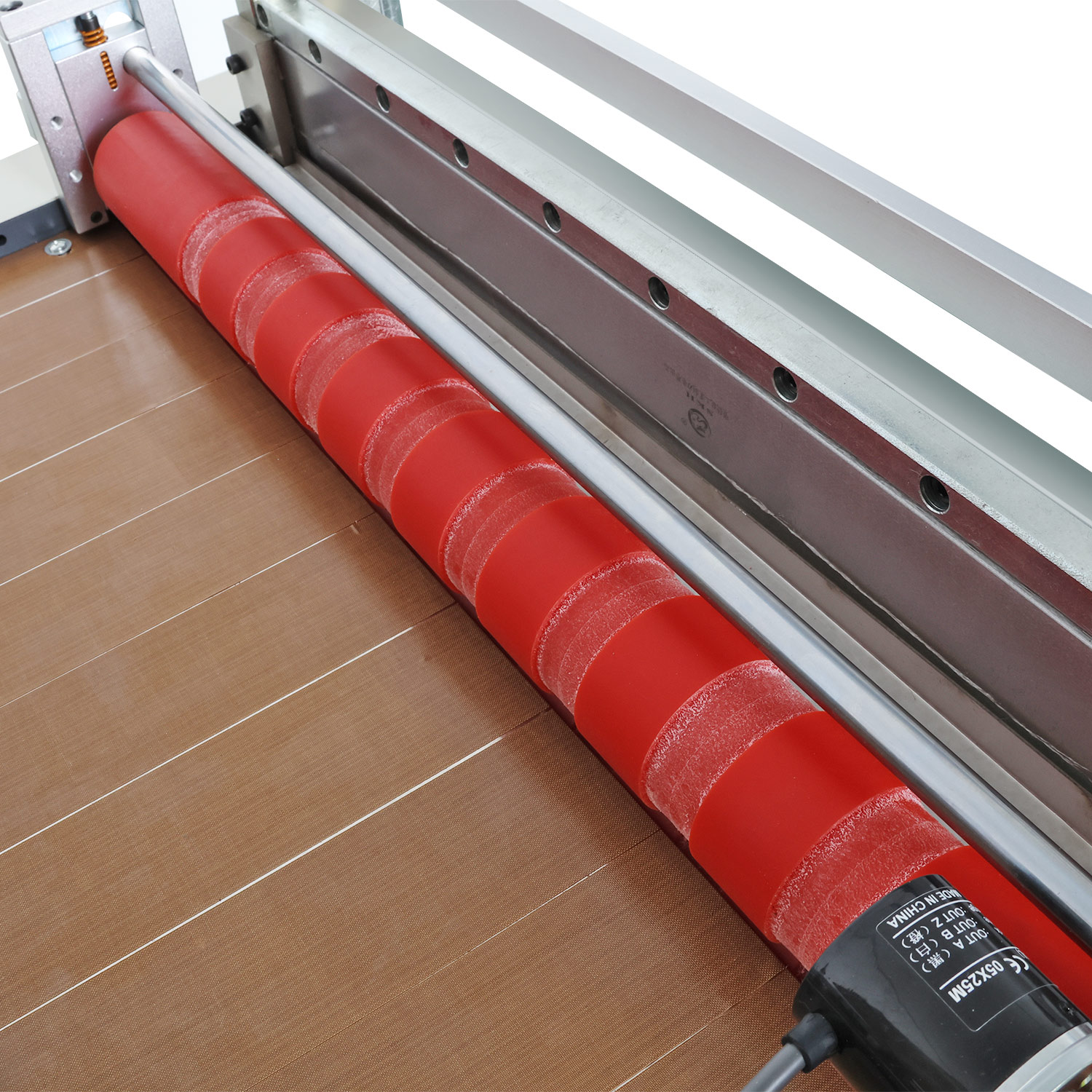

Automatic Feeding System

Our system now features automatic feeding rollers. The unwind photoelectric sensor detects swing arm movement and sends signals to the rubber rollers, which automatically adjust their speed to ensure smooth and synchronized feeding.

Equipped with a servo motor that ensures control accuracy of 0.1mm.
Cutting Knife System:

The cutting knife is made of sharp steel and uses a scissor-like up-and-down motion for quick, efficient cutting. It delivers clean, burr-free edges and operates at speeds of up to 80m per minute on high-speed machines.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

Can you customize the punching mold?

Yes, we can. Please send us your design.
How do I maintain a roll-to-sheet cutting machine?

Regular maintenance includes cleaning the blades, checking the servo motor and control systems, and ensuring proper lubrication to maintain smooth operation and longevity.
What is production lead time?

Our standard machines have a production lead time of seven days, while custom machines require a lead time of two weeks.
