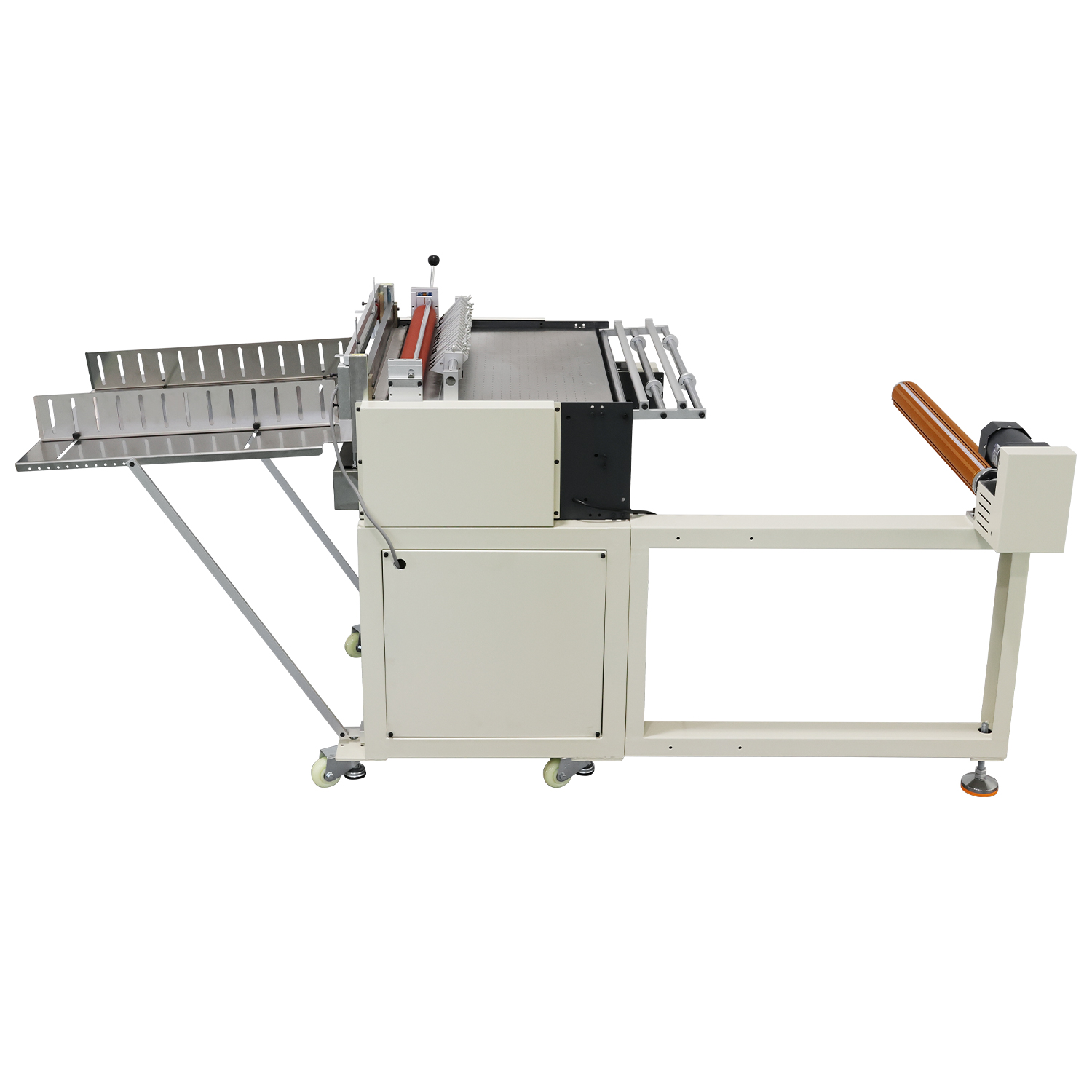

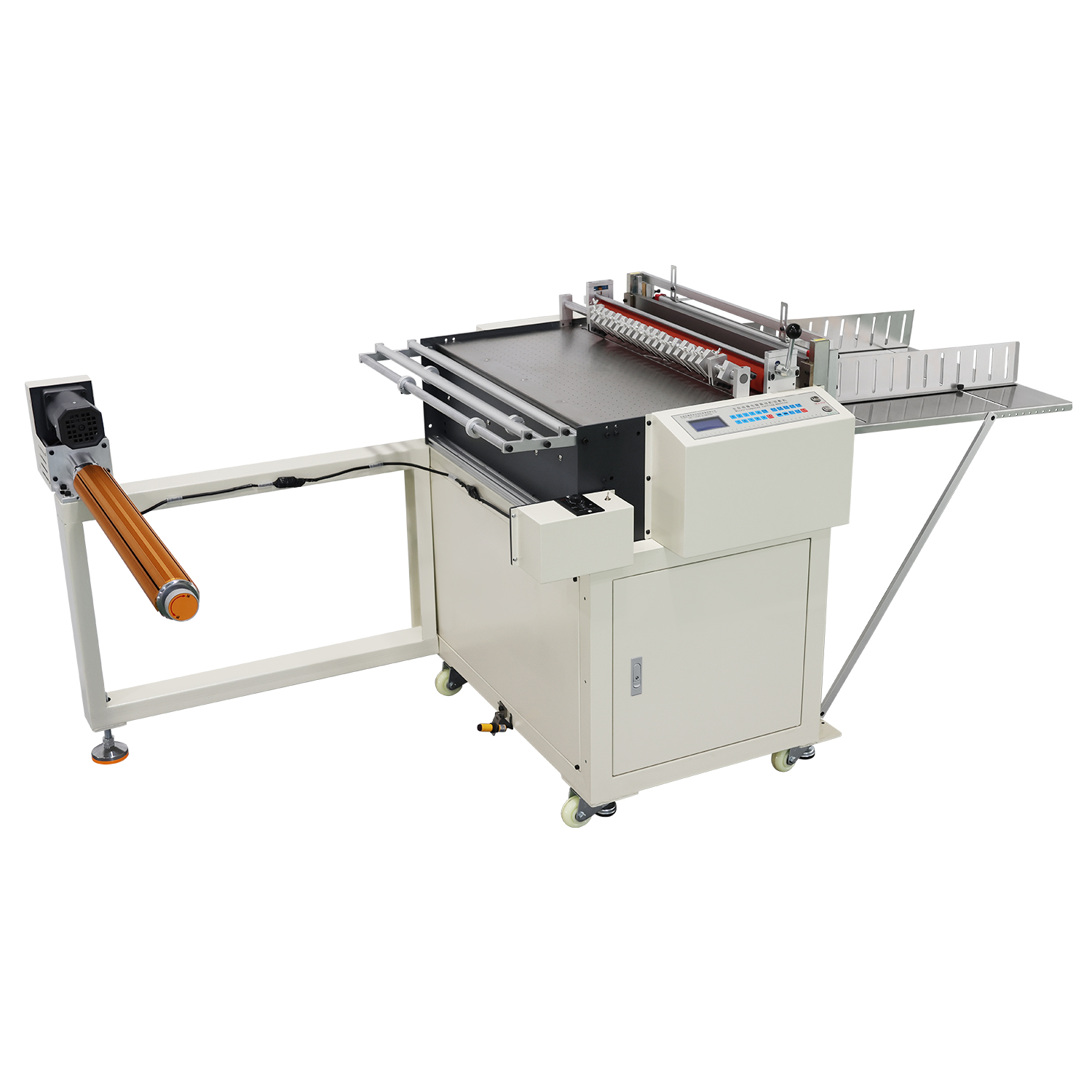

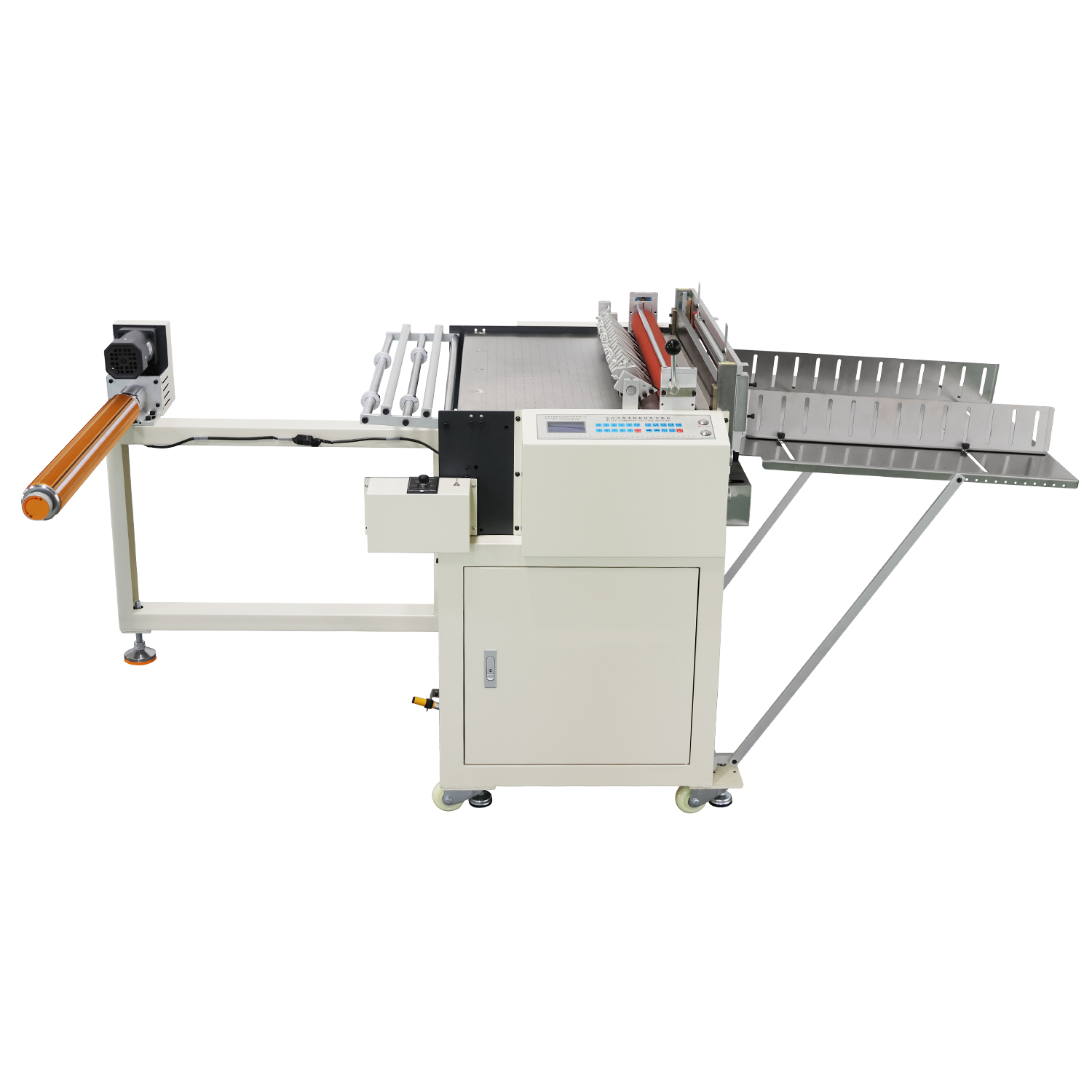

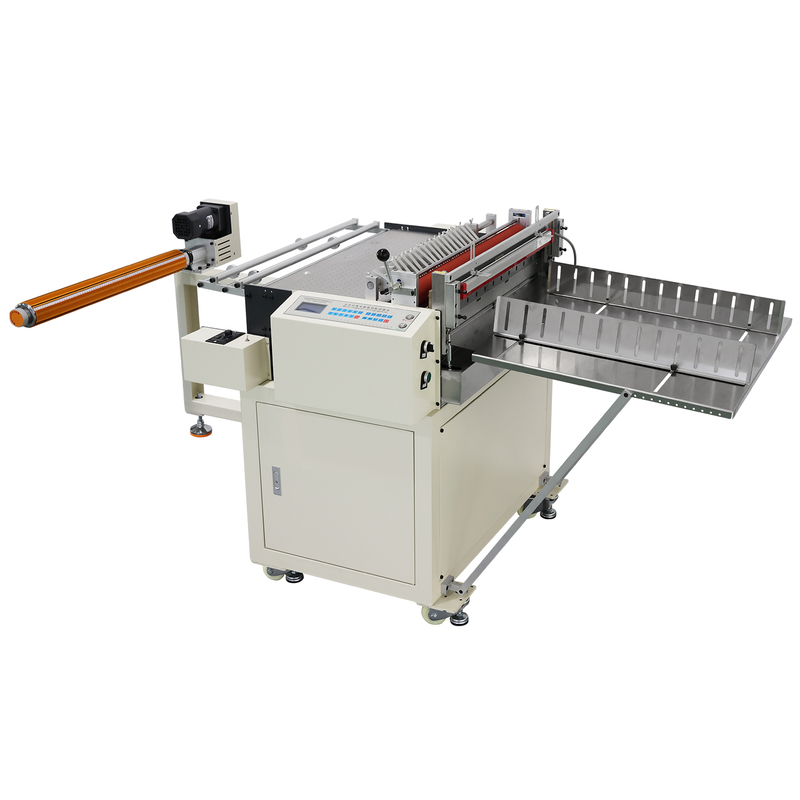

Small Automatic Feeding Roll To Sheet Cutter for DTF Film

Wholesale Automatic DTF Film/Trasfer Film Roll To Sheet Cutting Machine

Small Automatic Feeding Roll To Sheet Cutter for DTF Film


Availability:

Quantity:



Inquire Add to Basket

A roll-to-sheet cutter is a machine that cuts continuous roll materials into individual sheets with precision, ensuring consistent sizes and smooth, clean edges. It can handle a wide range of materials, including paper, plastic films (such as PET and PVC), adhesive labels, non-woven and synthetic fabrics, laminated packaging materials, thin foam sheets, and aluminum foil. This versatile machine is widely used in industries like packaging, printing, textiles, and labeling for efficient and accurate cutting.

Model:
HDK-700ZS
Brand:
HDK

PET film cutting machine pvc film cutting machine plastic film cutting machine poly film cutting machine film reel to sheet cutter machine transfer film automatic cutting machine high speed cutting machine unwinding cutting machine slitting machine horizontal and vertical cutting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

Small Automatic Feeding Roll To Sheet Cutter for DTF Film

The Small Automatic Feeding Roll To Sheet Cutter is specially designed for DTF film and other thin flexible materials, providing an efficient converting solution with high accuracy and stable performance.

Key Features

Automatic Feeding System – Ensures smooth and continuous feeding from roll to sheet without manual intervention.
High Precision Cutting – Guarantees accurate sheet size, maintaining consistency for DTF printing requirements.
Compact & Efficient – Small footprint, easy to install and operate, suitable for workshops with limited space.
Stable Performance – Equipped with advanced control system and reinforced structure for long-term reliable operation.
Versatile Applications – Not only for DTF film, but also compatible with PET, BOPP, and other plastic films.

Why Choose Our Roll-to-Sheet Cutter?

✔ Designed by an experienced manufacturer with more than 10 years in roll-to-sheet converting.
✔ Optimized for DTF film cutting, ensuring smooth edges and preventing material waste.
✔ Cost-effective solution with low maintenance requirements.

This small automatic feeding roll-to-sheet cutter is the ideal choice for DTF film producers, printing houses, and packaging converters who are looking for efficiency, precision, and stability in their production

Model

HDK-700Z

Voltage

110/220V

Fequency

50/60Hz

Feeding width

700mm

Cutting length

0.1-99999.9mm

Cutting speed

30-40 meters/min

Cutting precision

+-0.1mm

Feeding motor

Servo motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Machine size

910*990*990mm

Packing size

980*1070*1130mm

Net weight

280kg

Gross weight

330kg

+8615711828157

The machine consists of four main parts, each designed to provide stable power and precision while maintaining an attractive, modern appearance. The frame is built for durability and stability, ensuring smooth operation even at high speeds. The control system is sleekly integrated for easy operation and efficient performance. The cutting unit is compact and streamlined, combining high functionality with a visually appealing design that complements any production environment.

Introduction

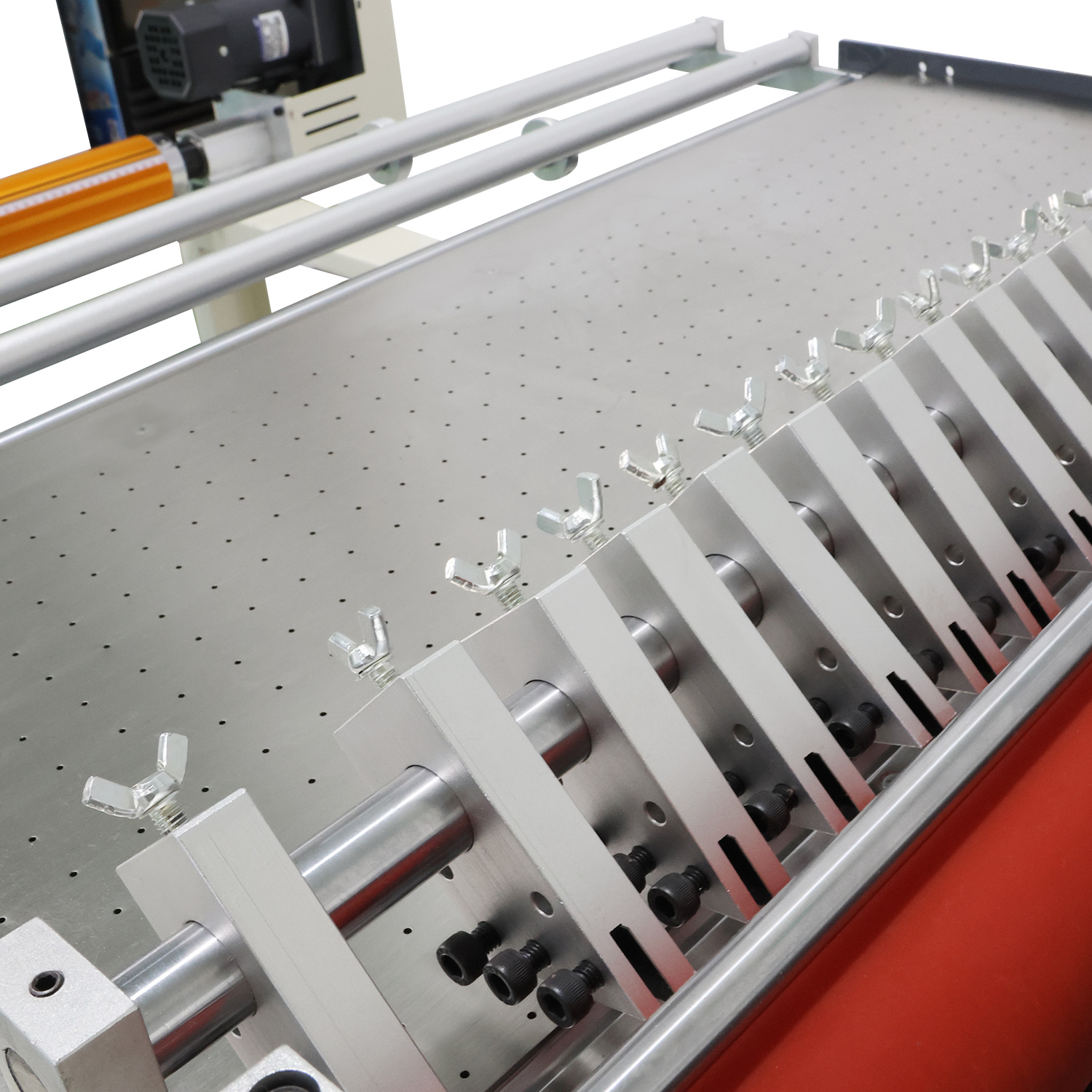

Loading Material Part

The single-sided hand-expanding shaft allows for quick and easy loading and unloading, while material is released smoothly through an automatic unwinding system.The material is guided along a rail and positioned accurately onto the cutting panel.
Detection part

Equipped with a high-quality eye mark sensor imported from Japan, the system quickly detects color changes or printed registration marks with exceptional accuracy. Once the target mark is recognized, no further calibration is required.
Paired with a powerful suction device, the machine ensures the material stays firmly in place during operation—especially effective for thicker materials that are prone to shifting.
Cutting Knife System

The cutting knife is made of sharp steel and uses a scissor-like up-and-down motion for quick, efficient cutting. It delivers clean, burr-free edges and operates at speeds of up to 80m per minute on high-speed machines.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

1. What is a roll-to-sheet cutting machine?

A roll-to-sheet cutting machine, also known as an auto sheeter, is an industrial device designed to convert flexible roll materials—such as paper, film, foam, or metal foil—into individual sheets of specified dimensions. This equipment is essential in industries like packaging, printing, electronics, advertising, automotive, and medical sectors, ensuring efficient and precise cutting processes.
How do I maintain a roll-to-sheet cutting machine?

Regular maintenance includes cleaning the blades, checking the servo motor and control systems, and ensuring proper lubrication to maintain smooth operation and longevity.
What is production lead time?

Our standard machines have a production lead time of seven days, while custom machines require a lead time of two weeks.
