Compact Roll to Sheet Cutter for Food Wrapping Paper

Compact Roll to Sheet Cutter for Food Wrapping Paper


Availability:

Quantity:



Inquire Add to Basket

A roll-to-sheet cutter is a machine that cuts continuous roll materials into individual sheets with precision, ensuring consistent sizes and smooth, clean edges. It can handle a wide range of materials, including paper, plastic films (such as PET and PVC), adhesive labels, non-woven and synthetic fabrics, laminated packaging materials, thin foam sheets, and aluminum foil. This versatile machine is widely used in industries like packaging, printing, textiles, and labeling for efficient and accurate cutting.

Model:
HDK-700Z
Brand:
HDK

industrial rotary cutting machine baking paper sheet cutting machine reel to sheet cutting machine high speed sheeting cutting machine roll to sheet unwinding cutter hamburger paper cutting machine Fully Automatic Slitting Machine non-woven fabric cutting machine plastic film cutting machine aluminum foil cutting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

Product Description

Roll To Sheet Cutting Machine is a compact and cost-effective solution for small to medium-sized businesses. Despite its small size, it offers excellent performance and functionality. It is easy to install and operate, making it a great choice for businesses with limited space and budget. The machine is designed to handle a variety of common rolled materials, providing a reliable and efficient cutting solution.

Key Features

1. Space-Saving Design: Its compact design allows it to be easily installed in small workshops or production areas without taking up too much space.

2. Cost-Effective: Offers a high level of performance at a relatively low cost, making it an attractive option for businesses looking to optimize their production costs.

3. User-Friendly Interface: The interface is simple and intuitive, making it easy for operators to learn and use the machine quickly.

4. Stable Operation: Built with a sturdy frame and high-quality components, it ensures stable operation even at high speeds.

5. Energy Efficiency: It is designed to be energy-efficient, reducing the energy consumption during operation and helping businesses save on energy costs.

Applications

1. Small Printing Shops: Ideal for small printing shops to cut paper and cardboard into sheets for various printing jobs.

2. Craft and DIY Workshops: Can be used to cut fabric, paper, and other materials for craft and DIY projects.

3. Small Packaging Businesses: Helps small packaging businesses cut packaging materials into the required sheet sizes for their products.

4. Home-based Manufacturing: Suitable for home-based manufacturing businesses that need to cut rolled materials into sheets for their products.

5. Art and Design Studios: Used to cut various materials for art and design projects, such as canvas, paper, and film.

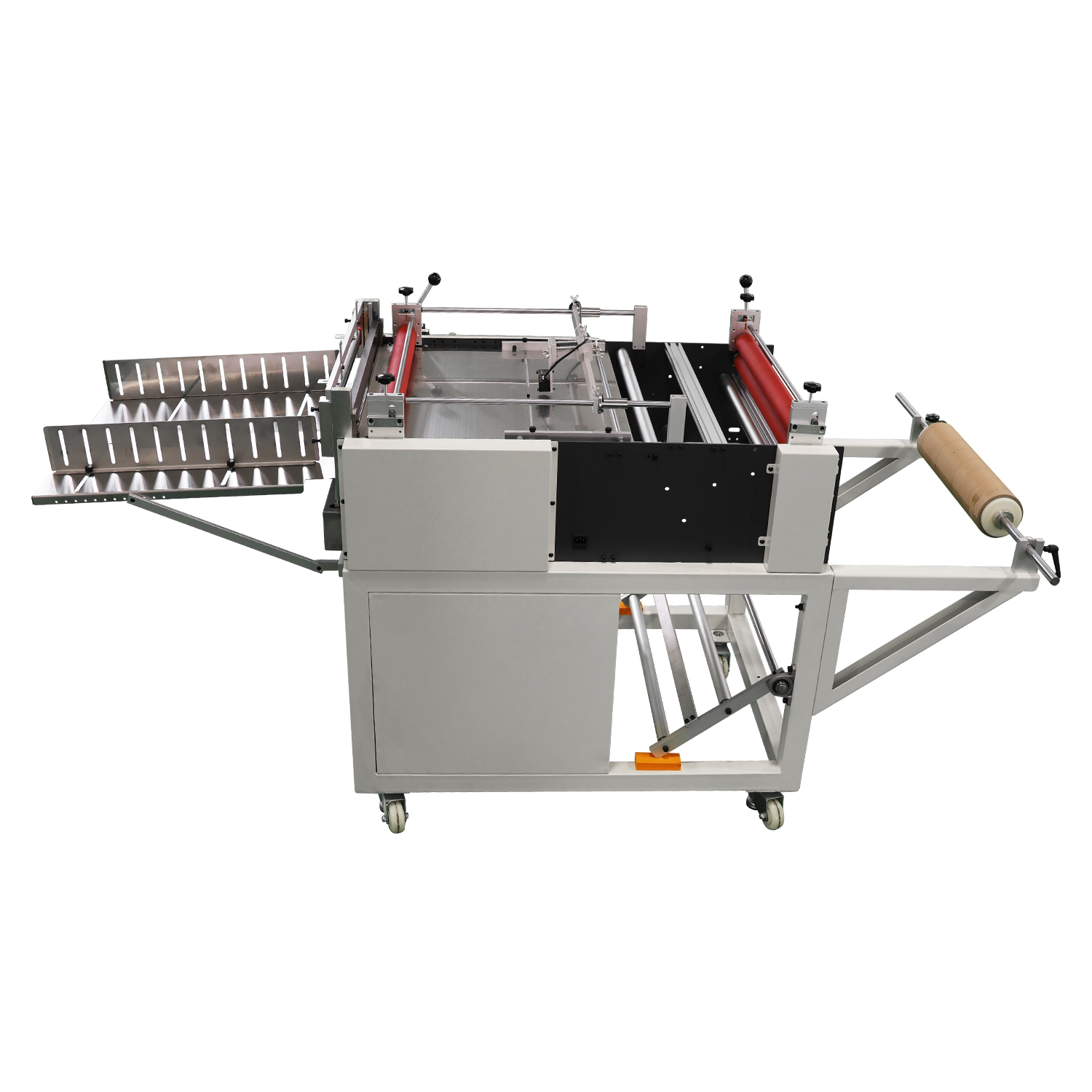

700ZS (3)

Model

HDK-700Z

Voltage

110/220V

Fequency

50/60Hz

Feeding width

700mm

Cutting length

0.1-99999.9mm

Cutting speed

30-40 meters/min

Cutting precision

+-0.1mm

Feeding motor

Servo motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Machine size

910*890*990mm

Packing size

970*980*1120mm

+8615711828157

Email

sonialee_haidike@outlook.com

The machine consists of four main parts, each designed to provide stable power and precision while maintaining an attractive, modern appearance. The frame is built for durability and stability, ensuring smooth operation even at high speeds. The control system is sleekly integrated for easy operation and efficient performance. The cutting unit is compact and streamlined, combining high functionality with a visually appealing design that complements any production environment.

Introduction

Automatic convyor

The pneumatic baffle ensures that materials are automatically and accurately positioned during conveying, keeping the finished products neatly stacked and preventing misalignment.

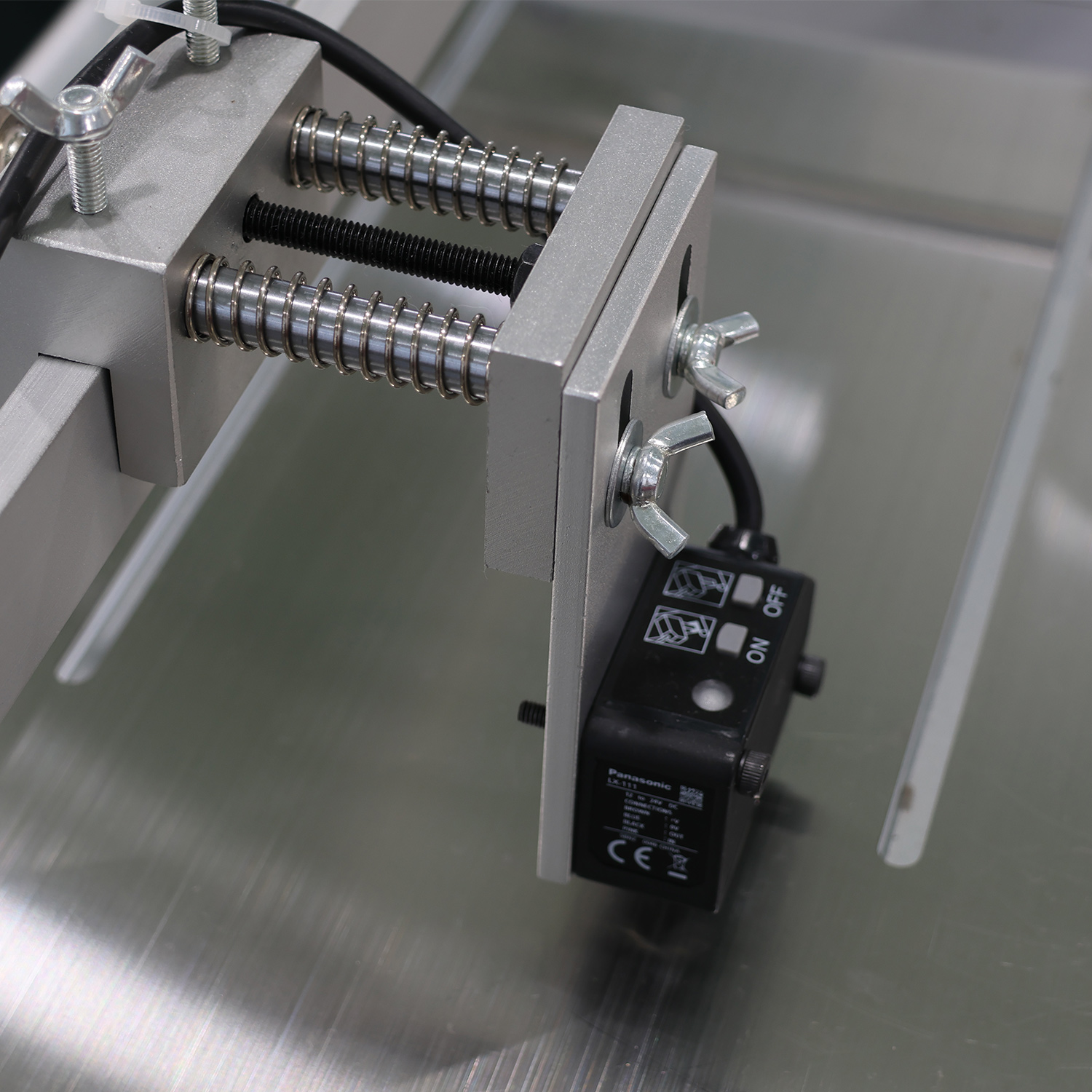

Web Guiding Sensor

The sensor monitors the presence of roll material at the feeding section and automatically controls the operation of the rear rollers based on the detection.

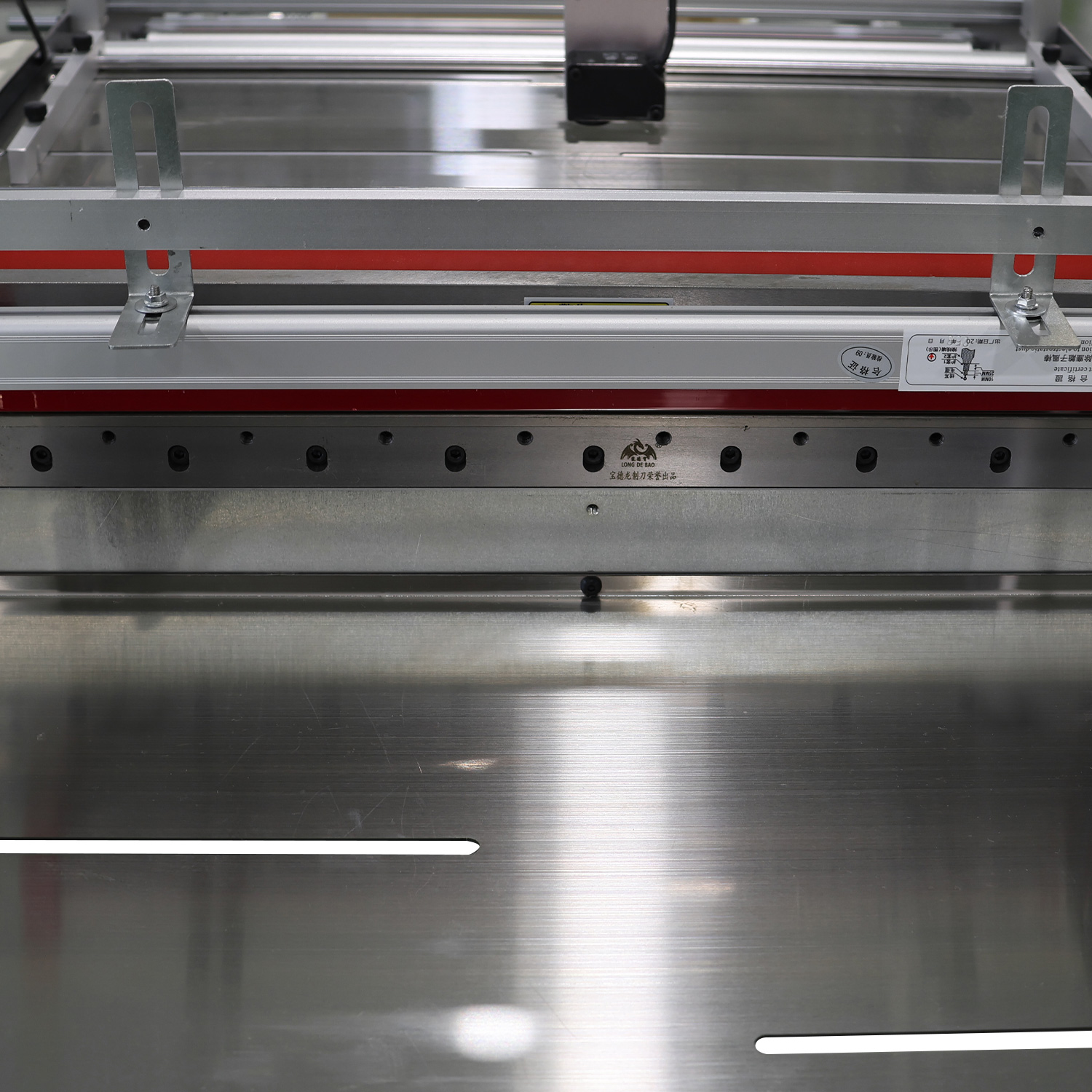

Cutting Knife System:

The cutting knife is made of sharp steel and uses a scissor-like up-and-down motion for quick, efficient cutting. It delivers clean, burr-free edges and operates at speeds of up to 80m per minute on high-speed machines.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

We need to install the whole machine?

The main unit, feeding section, and cutting section are pre-installed. You only need to complete the simple installation of the loading unit and collection table, with full video guidance provided.
How long is the warranty?

Our machine comes with a one-year warranty covering all non-human damages and manufacturing defects.

During the warranty period, we provide free technical support and replacement parts (excluding consumable items).

After the warranty period, we continue to offer lifetime technical support. Spare parts will be available at a reasonable cost, and we provide fast response service to ensure your machine maintains optimal performance.
What is production lead time?

Our standard machines have a production lead time of seven days, while custom machines require a lead time of two weeks.
