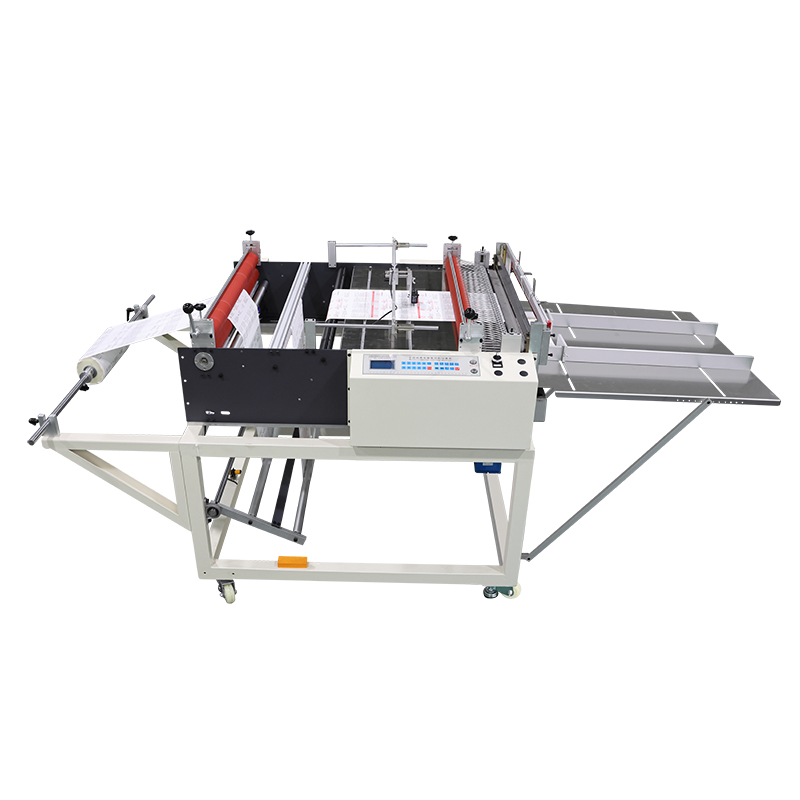

Fully Automatic Eye Sensor Tracing Printed Paperboard Roll To Sheet Cutter Machine

Fully Automatic Eye Sensor Tracing Printed Paperboard Roll To Sheet Cutter Machine


Availability:

Quantity:



Inquire Add to Basket

A roll-to-sheet cutter is a machine that cuts continuous roll materials into individual sheets with precision, ensuring consistent sizes and smooth, clean edges. It can handle a wide range of materials, including paper, plastic films (such as PET and PVC), adhesive labels, non-woven and synthetic fabrics, laminated packaging materials, thin foam sheets, and aluminum foil. This versatile machine is widely used in industries like packaging, printing, textiles, and labeling for efficient and accurate cutting.

Model:
HDK-800ZS
Brand:
HDK

printing cutting machine roll to sheet slitting machine paper cutting machine non woven fabric cutting machine OPP film automatic cutting machine unwinding cutting machine label cutting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

Product Description

Eye Position Roll To Sheet Cutting Machine is an improved model with enhanced detection accuracy and cutting performance. It is designed to meet the higher quality requirements of modern industries for materials with specific pattern or mark cutting. The machine is built with high-quality components and advanced software to ensure reliable and efficient operation.

Key Features

1. Enhanced Optical Detection: The optical detection system has been upgraded to provide higher resolution and more accurate detection of the eye position or marks on the material.

2. Intelligent Cutting Algorithm: Equipped with an intelligent cutting algorithm that can automatically adjust the cutting path based on the detected eye position, ensuring the best cutting results.

3. High-Speed Operation: Despite the complex detection and cutting process, the machine can still operate at a relatively high speed, increasing the production efficiency.

4. User-Friendly Interface: The interface is designed to be more user-friendly, allowing operators to easily set up the detection parameters and cutting tasks.

5. Data Recording and Analysis: It can record the cutting data and perform analysis, helping users to monitor the performance of the machine and improve the cutting quality.

Applications

1. High-End Printing and Packaging: Used for cutting high-quality printed materials with complex patterns or logos for luxury packaging, high-end labels, and other premium products.

2. Fashion and Apparel Industry: Ideal for cutting high-precision patterned fabrics for high-fashion clothing and accessories, ensuring the perfect alignment of the patterns.

3. Art and Design Products: Can cut art prints, canvas, and other artistic materials with accurate pattern positioning for art exhibitions and decorative purposes.

4. Electronics Product Packaging: Used to cut packaging materials with specific designs or logos for electronics products, enhancing the brand image.

5. Home Appliance Decoration: For cutting decorative materials with patterns or logos for home appliance exteriors, such as refrigerator doors and washing machine panels.

1200 (2)

Model

HDK-800Z

Voltage

110/220V

Fequency

50/60Hz

Feeding width

800mm

Cutting length

0.1-99999.9mm

Cutting speed

30-40 meters/min

Cutting precision

+-0.1mm

Feeding motor

Servo motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Machine size

910*1090*990mm

Packing size

980*1170*1130mm

The machine consists of four main parts, each designed to provide stable power and precision while maintaining an attractive, modern appearance. The frame is built for durability and stability, ensuring smooth operation even at high speeds. The control system is sleekly integrated for easy operation and efficient performance. The cutting unit is compact and streamlined, combining high functionality with a visually appealing design that complements any production environment.

Introduction

Loading Material Part:

The floor stand can withstand loads of up to 150 kg, making it ideal for cutting paper, film and similar applications. This is a suitable choice if your raw material rolls weigh no more than 150 kg.
Automatic Feeding System:

Our system now features automatic feeding rollers. The unwind photoelectric sensor detects swing arm movement and sends signals to the rubber rollers, which automatically adjust their speed to ensure smooth and synchronized feeding.
Cutting Knife System:

The cutting knife is made of sharp steel and uses a scissor-like up-and-down motion for quick, efficient cutting. It delivers clean, burr-free edges and operates at speeds of up to 80m per minute on high-speed machines.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

1. What is a roll-to-sheet cutting machine?

A roll-to-sheet cutting machine, also known as an auto sheeter, is an industrial device designed to convert flexible roll materials—such as paper, film, foam, or metal foil—into individual sheets of specified dimensions. This equipment is essential in industries like packaging, printing, electronics, advertising, automotive, and medical sectors, ensuring efficient and precise cutting processes.
How do I maintain a roll-to-sheet cutting machine?

Regular maintenance includes cleaning the blades, checking the servo motor and control systems, and ensuring proper lubrication to maintain smooth operation and longevity.
What is production lead time?

Our standard machines have a production lead time of seven days, while custom machines require a lead time of two weeks.
