Automatic Web Guiding Roll To Sheet Horizontal & Vertical Cutting Machine

Automatic Web Guiding Roll To Sheet Horizontal & Vertical Cutting Machine


Availability:

Quantity:



Inquire Add to Basket

High-speed automatic roll-to-sheet cutter with web guiding system. Supports both horizontal and vertical cutting for plastic film, paper, PET, PVC, and laminated materials. Servo control, high accuracy, and efficient converting performance.

Model:
HDK-800Z
Brand:
HDK

reel to sheet cutter slitter machine kraft paper cutting machine plastic film cutting machine automatic cutting machine food paper cutting machine wrapping paper cutting machine non-woven fabric cutting machine converting machine aluminum foil/copper foil cutting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

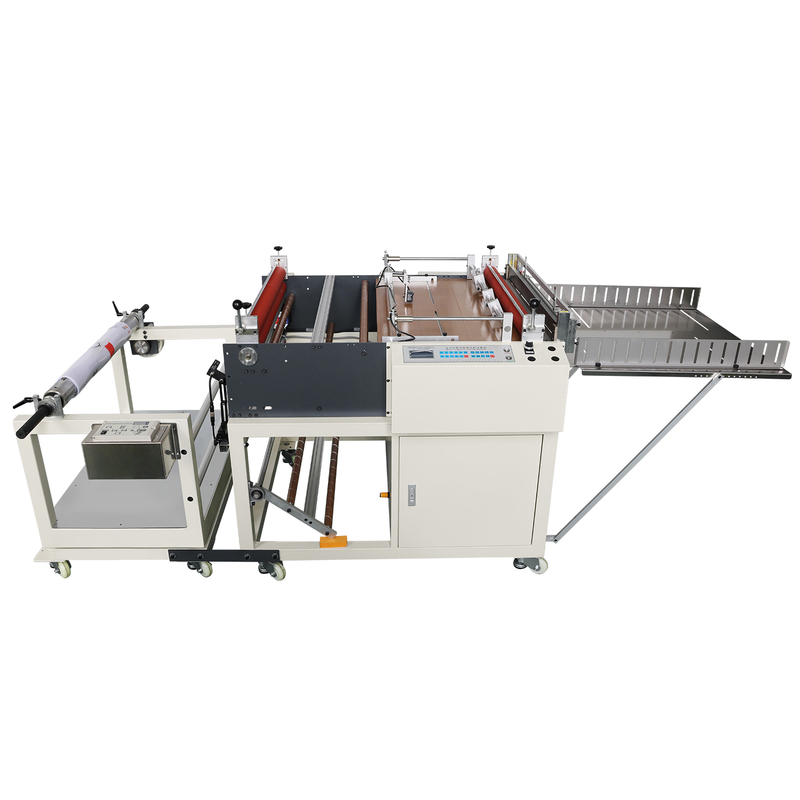

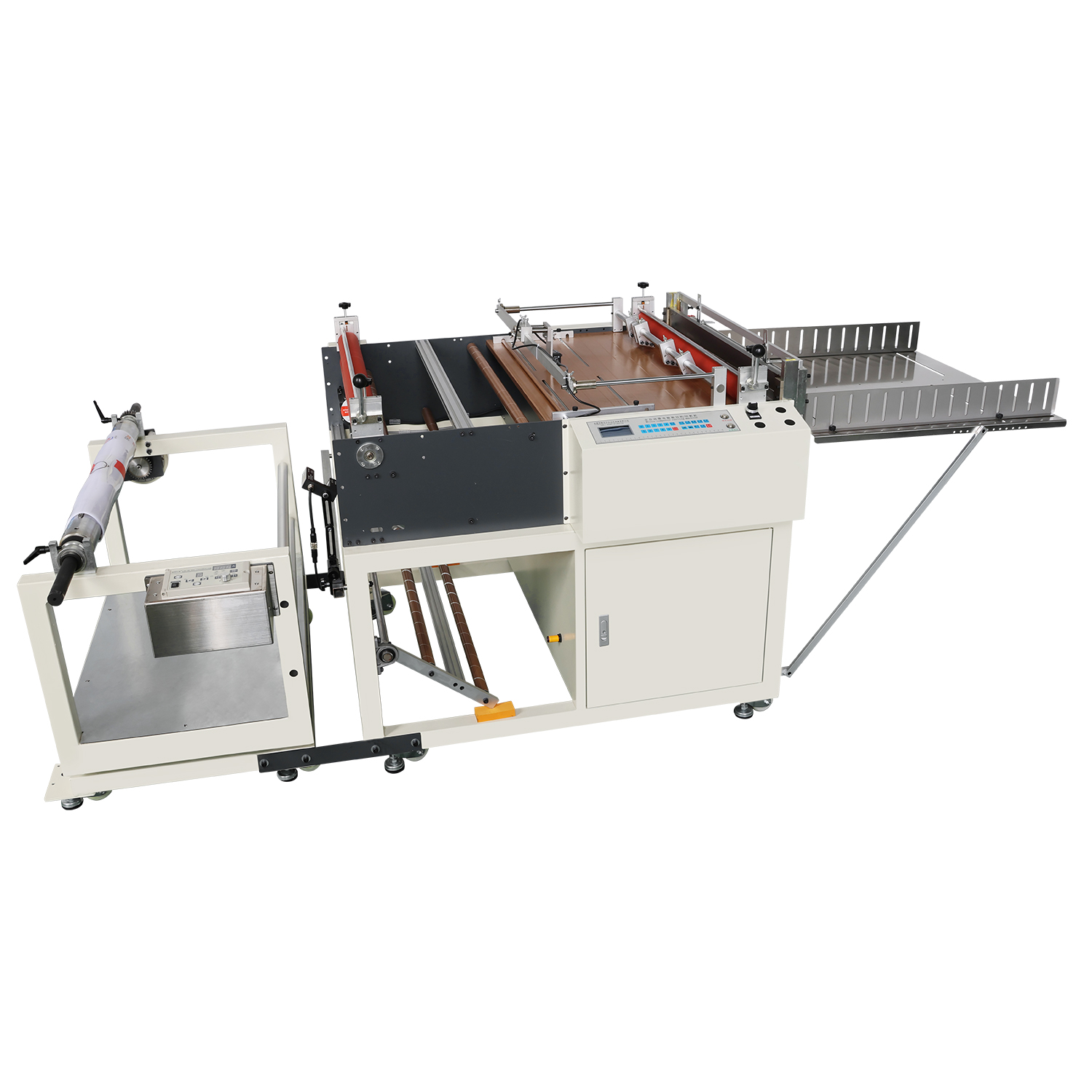

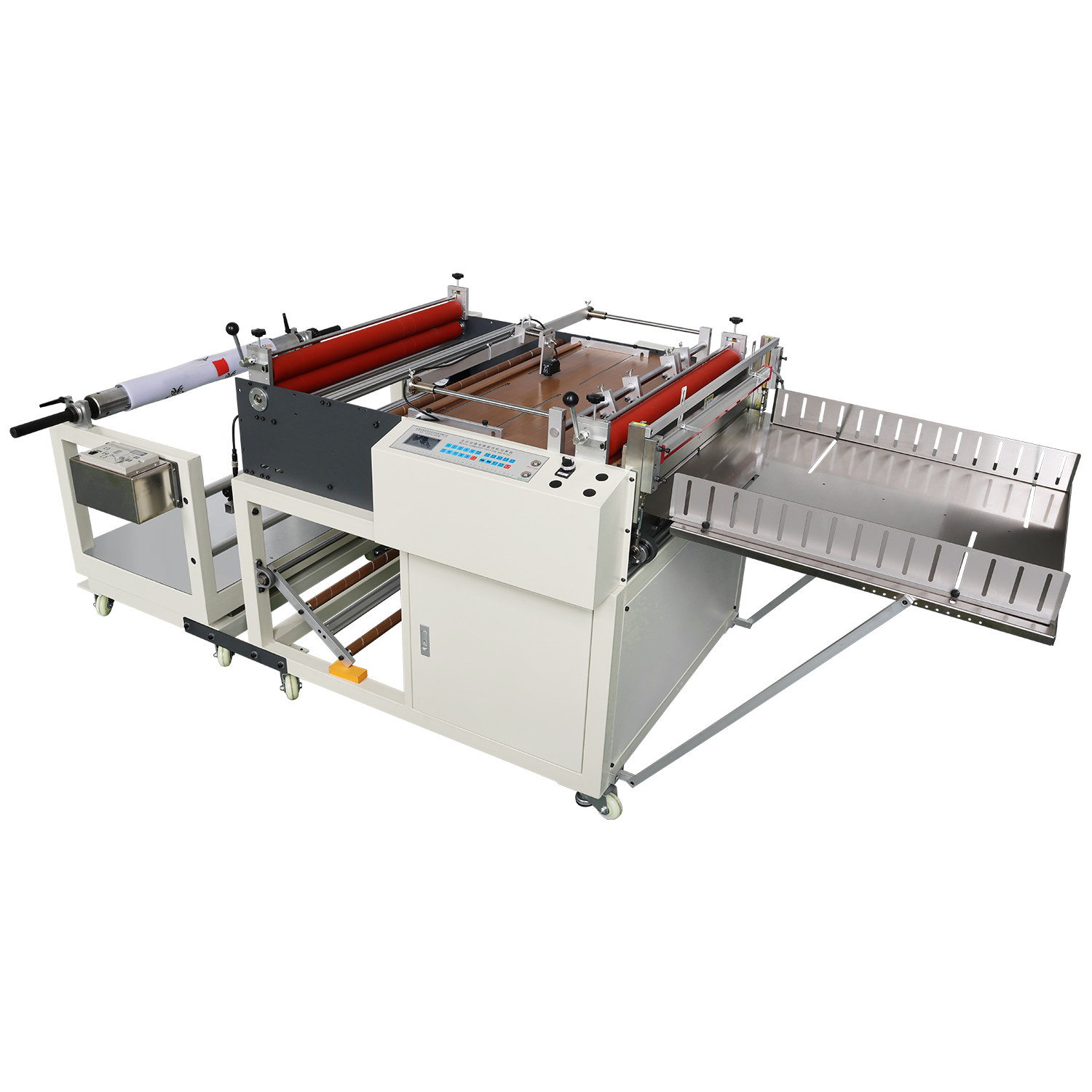

Automatic Web Guiding Roll To Sheet Horizontal & Vertical Cutting Machine

The Automatic Web Guiding Roll To Sheet Horizontal & Vertical Cutting Machine is designed for precise converting of film, paper, and laminated materials from roll to sheet.

Equipped with a web guiding system, it automatically corrects roll deviation, ensuring accurate cutting position during high-speed operation.
This machine integrates horizontal slitting and vertical sheeting functions, offering flexible converting for various industries.

Key Features

Multiple Blade Options: Uses round cutters or straight blades to achieve clean and accurate slitting.
Adjustable Slitting Width: Blade positions can be easily adjusted to meet different material width requirements.
Smooth Edges: Delivers precise and burr-free edges, suitable for high-quality packaging and printing applications.
Integrated Design: Works in-line with the roll-to-sheet cutter, improving productivity and material handling efficiency.

Applications

Plastic Film Converting – PET, PVC, BOPP, PE protective film, and laminated film.
Printing & Packaging – Printed film cutting with registration mark tracking.
Adhesive Tape & Label Industry – Self-adhesive or release liner materials.
Paper Converting – Art paper, coated paper, or specialty materials requiring dual cutting.

Model

HDK-800Z

Voltage

110/220V

Fequency

50/60Hz

Feeding width

800mm

Cutting length

0.1-99999.9mm

Cutting speed

30-40 meters/min

Cutting precision

+-0.1-0.3mm

Feeding motor

Servo motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Machine size

910*890*990mm

Packing size

970*980*1120mm

+8615711828157

Email

sonialee_haidike@outlook.com

Main Advantages:

Accurate cutting according to printed registration marks.

Automatic correction during high-speed operation.

Works for single or multiple color-printed materials.

Adjustable sensor sensitivity for different mark colors and materials.

Reduces waste and improves product consistency.

Introduction

Unwinding part

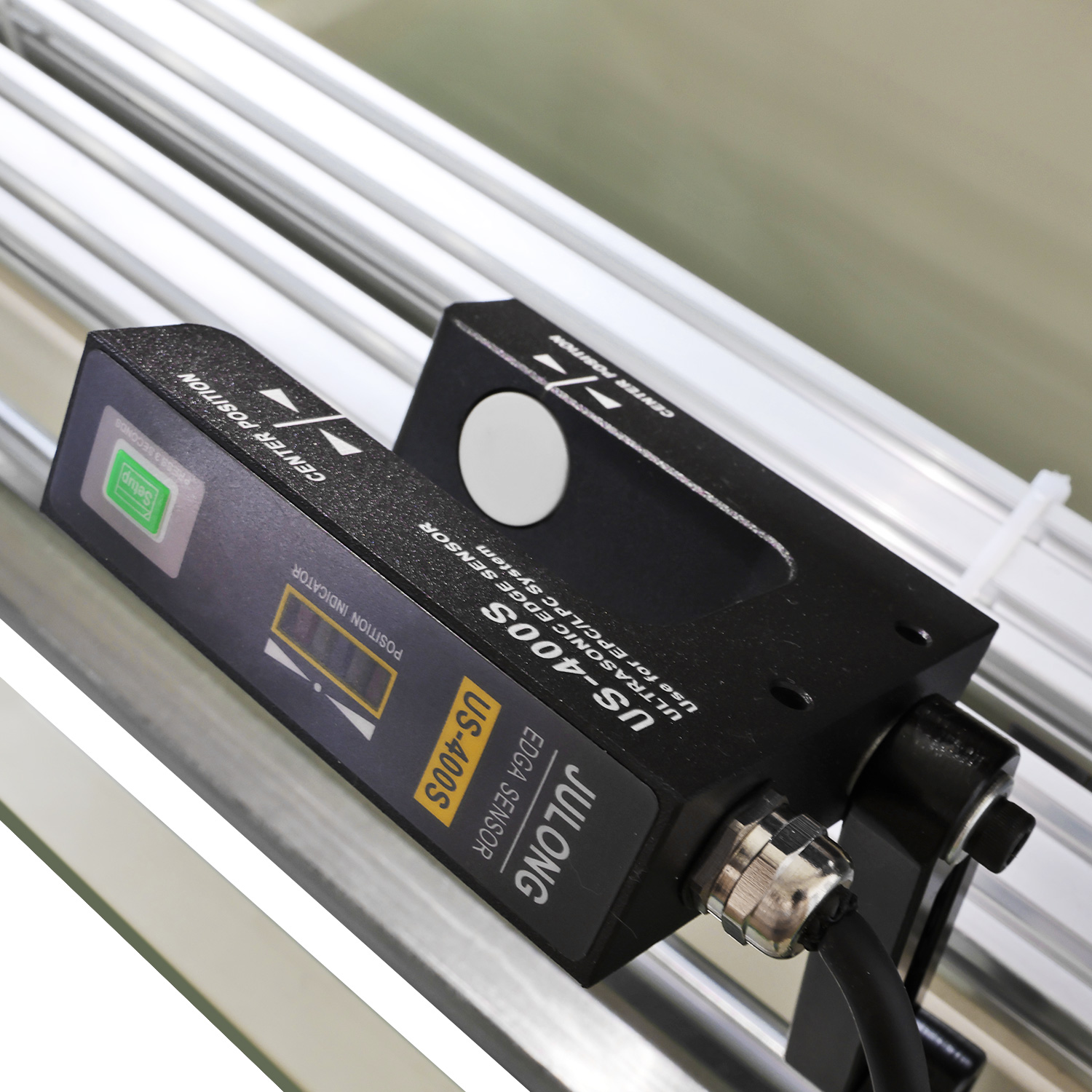

The unwinding section features an air shaft for fast, secure core clamping, a magnetic powder brake for smooth, adjustable tension control, and an automatic web-guiding system that corrects edge or print-line deviation in real time. Together they ensure stable feeding, precise alignment and minimal waste during high-speed roll-to-sheet converting.

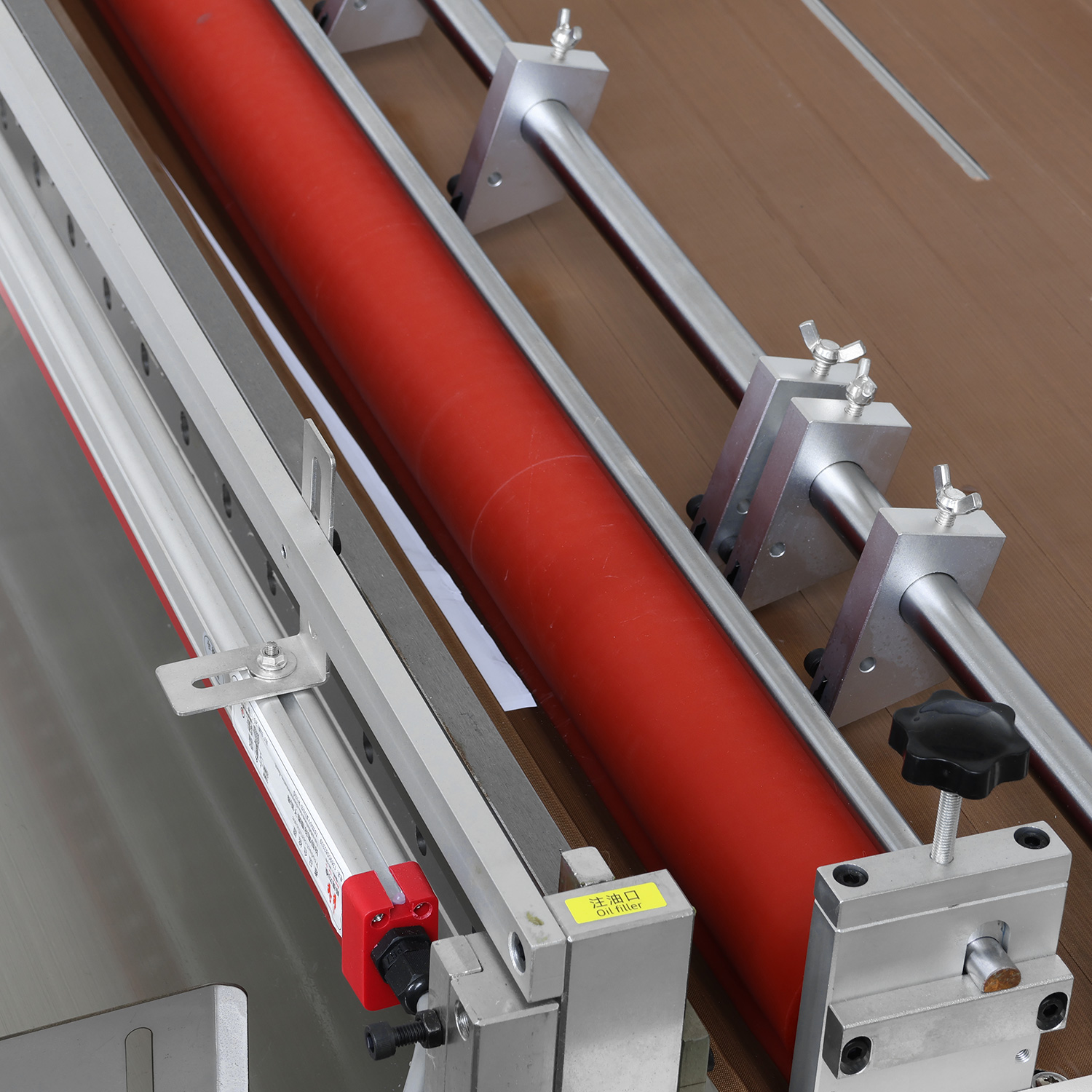

Slitting Circle Blades

Blade positions can be easily adjusted to meet different material width requirements.

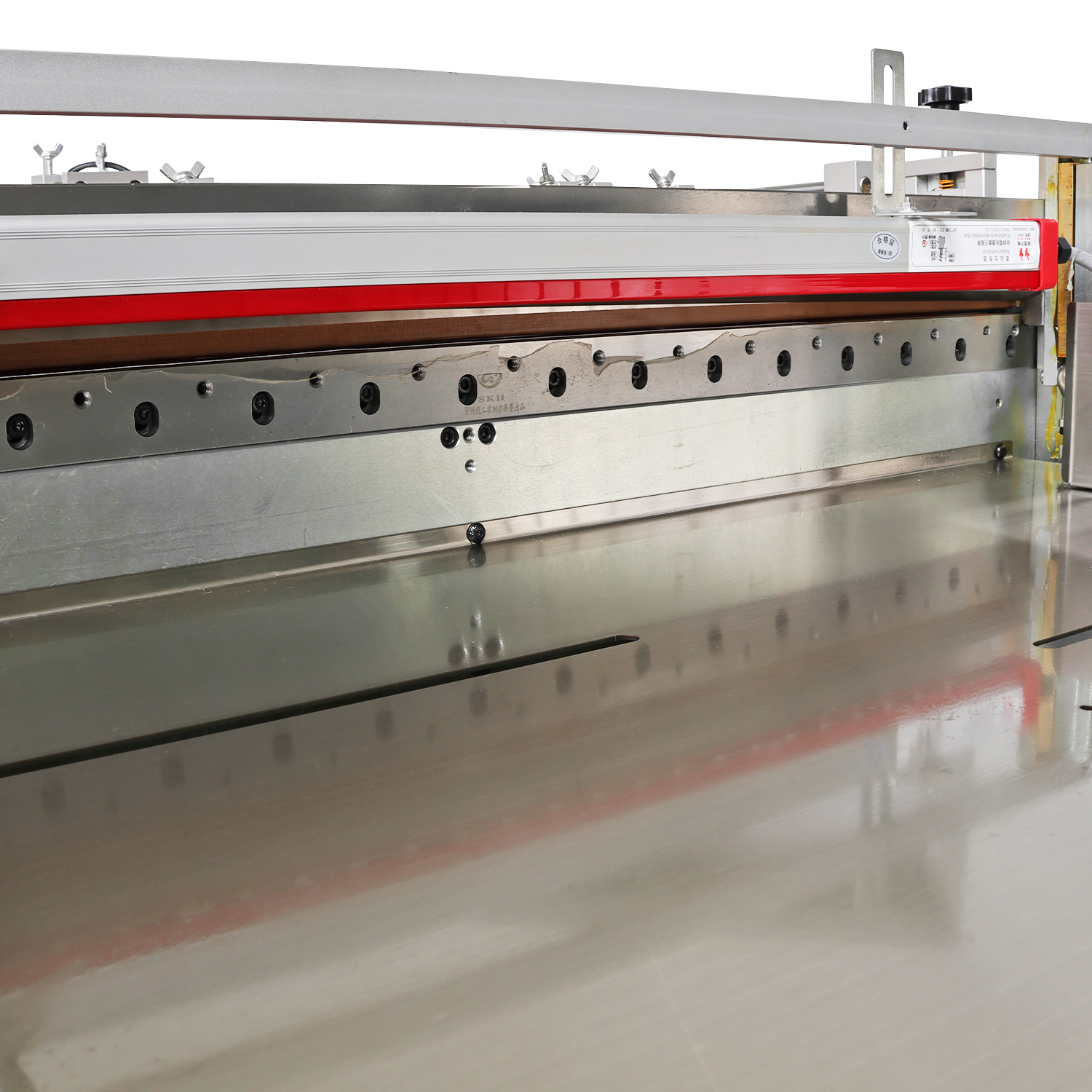

Registered Cutting

The registered cutting system ensures that each sheet is cut precisely according to the printed mark on the material.
By using a photoelectric eye sensor (eye mark sensor), the machine automatically detects the registration mark on printed films or papers and synchronizes the cutting position with the printed pattern.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

We need to install the whole machine?

The main unit, feeding section, and cutting section are pre-installed. You only need to complete the simple installation of the loading unit and collection table, with full video guidance provided.
How long is the warranty?

Our machine comes with a one-year warranty covering all non-human damages and manufacturing defects.

During the warranty period, we provide free technical support and replacement parts (excluding consumable items).

After the warranty period, we continue to offer lifetime technical support. Spare parts will be available at a reasonable cost, and we provide fast response service to ensure your machine maintains optimal performance.
What is production lead time?

Our standard machines have a production lead time of seven days, while custom machines require a lead time of two weeks.
