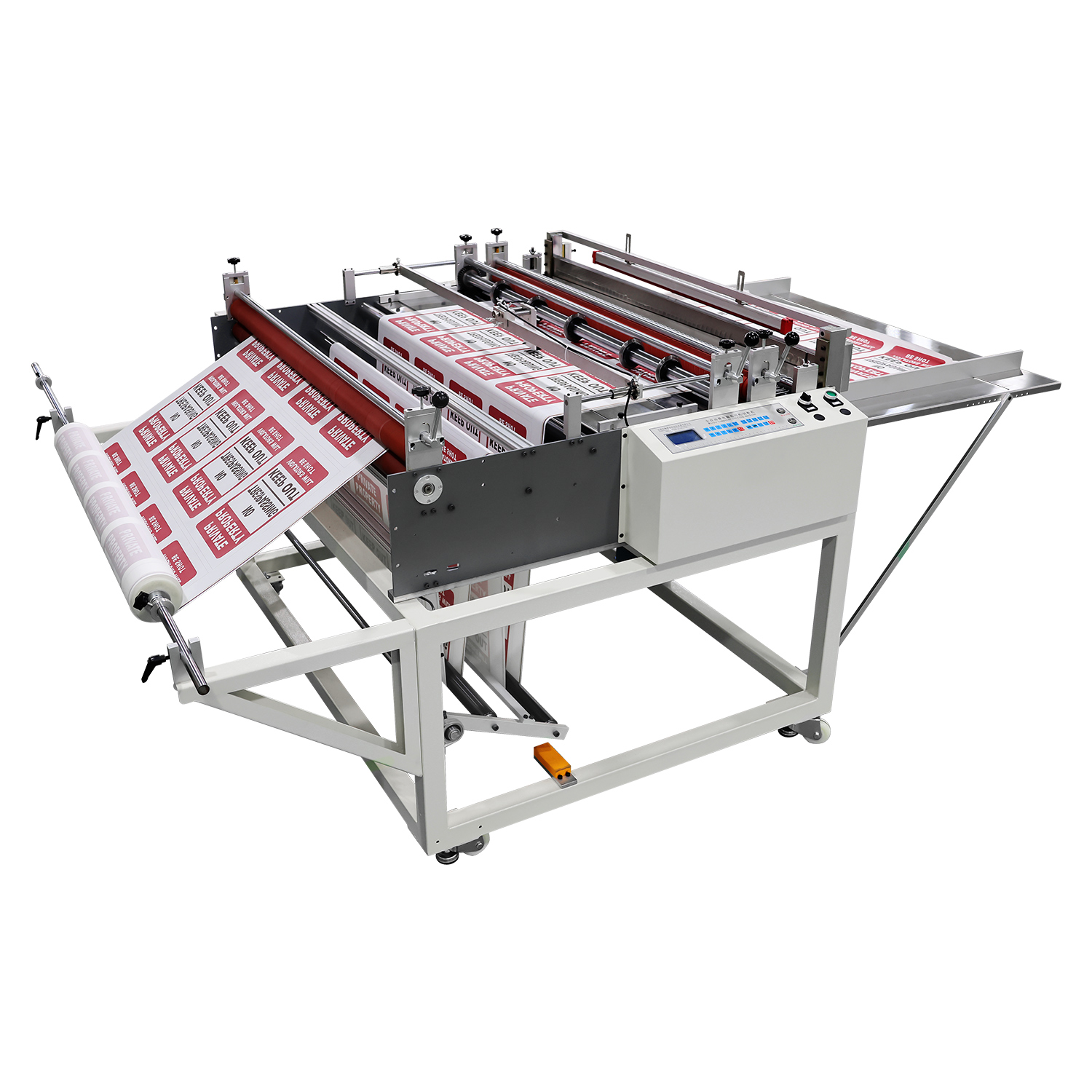

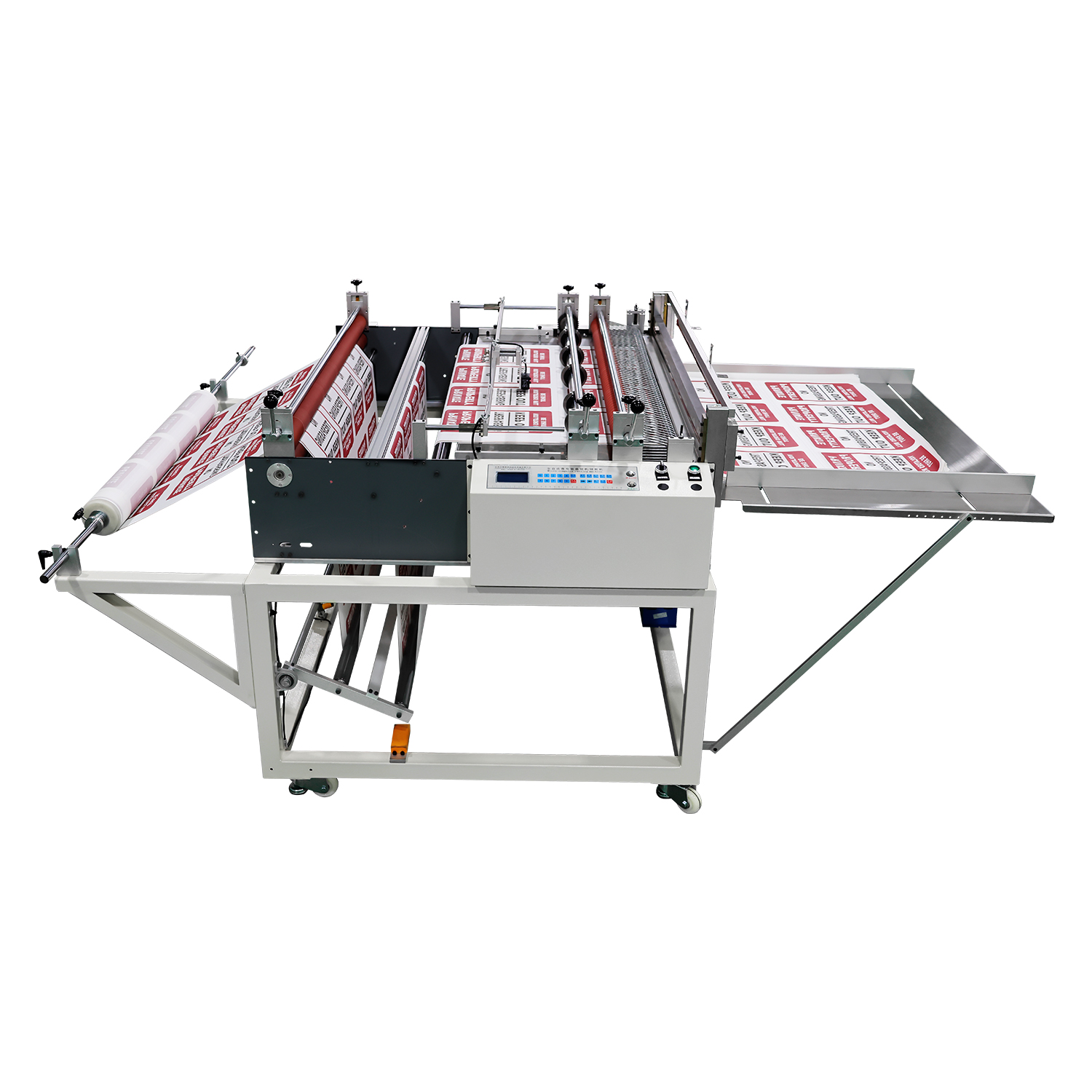

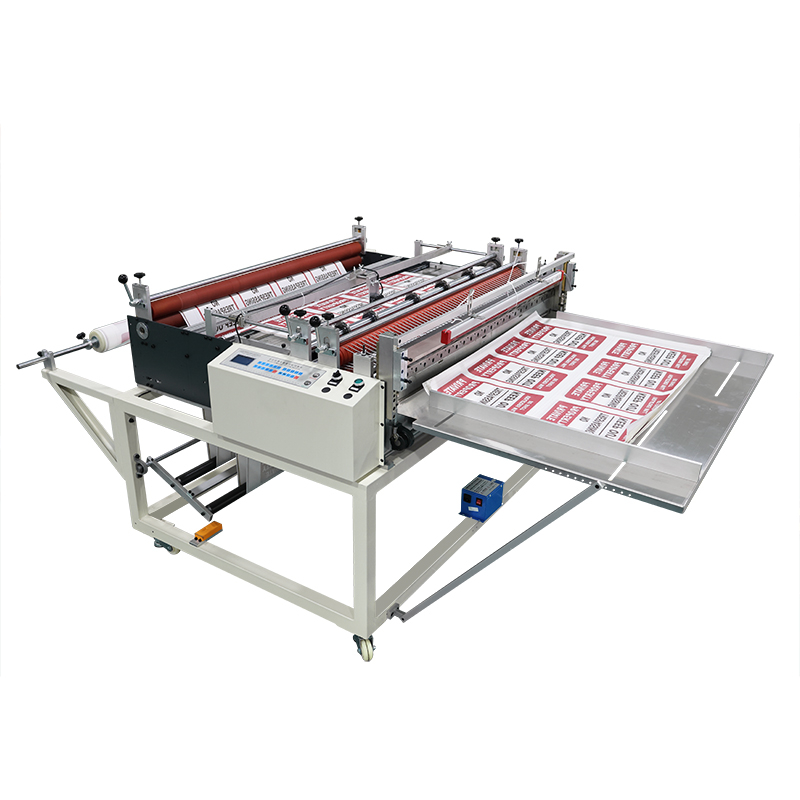

Automatic Eye Tracing Printed Paper Roll To Sheet Cutting Machine with Slitting Round Blades

1200mm Fully Automatic Copy Paper Roll To Sheet Cutting Machine

Automatic Eye Tracing Printed Paper Roll To Sheet Cutting Machine with Slitting Round Blades


Availability:

Quantity:



Inquire Add to Basket

A roll-to-sheet cutter is a machine that cuts continuous roll materials into individual sheets with precision, ensuring consistent sizes and smooth, clean edges. It can handle a wide range of materials, including paper, plastic films (such as PET and PVC), adhesive labels, non-woven and synthetic fabrics, laminated packaging materials, thin foam sheets, and aluminum foil. This versatile machine is widely used in industries like packaging, printing, textiles, and labeling for efficient and accurate cutting.

Model:
HDK-1200Z
Brand:
HDK
Code:
8441100000

sheet cutting machine printed paper roll to sheet cutter plastic film cutting machine warpping paper sheet cutting machine non woven fabric cutting machine aluminum foil cutting machine PET foam cutting machine kraft paper cutting machine PET fim cutting machine sheet slitting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

Automatic Eye Tracing Printed Paper Roll To Sheet Cutting Machine with Slitting Round Blades

This 1200mm cutting width machine is equipped with an air shaft, magnetic powder brake, Japanese eye mark sensor, and slitting disc blades. It is specifically designed for converting roll materials into sheets, including paper, plastic film, non-woven fabric, aluminum foil, and more — particularly ideal for printed materials.

Applications

Printing and packaging industries
Label and sticker production
Curtain and textile manufacturing
Flexible electronics materials
Food packaging materials
Medical and hygiene products

Key Features and Advantages

High Precision Cutting: The advanced Japanese eye mark sensor ensures accurate positioning and consistent cutting, even for printed patterns.
Versatile Material Compatibility: Capable of handling a wide range of roll materials, from paper and plastic film to non-woven and aluminum foil.
Efficient Slitting System: Equipped with durable slitting disc blades, supporting clean and sharp slitting without burrs.
Easy Roll Handling: The air shaft design enables quick and secure loading/unloading of rolls, improving operation efficiency.
Compact and User-Friendly Design: Space-saving layout with intuitive controls, suitable for various production environments.

Model

HDK-1200Z

Fequency

50/60Hz

Feeding width

1200mm

Cutting speed

30-40 meters/min

Cutting precision

+-0.1mm

Feeding motor

Servo motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Machine size

2330*1490*1070mm

Packing size

1550*1560*1210mm

Net weight

450kg

Gross weight

500kg

+8615711828157

The machine consists of four main parts, each designed to provide stable power and precision while maintaining an attractive, modern appearance. The frame is built for durability and stability, ensuring smooth operation even at high speeds. The control system is sleekly integrated for easy operation and efficient performance. The cutting unit is compact and streamlined, combining high functionality with a visually appealing design that complements any production environment.

Introduction

Loading part

For small roll materials with a roll weight under 50kg, we recommend using the Triangular Bracket.
Thanks to its triangular structure, the bracket provides excellent stability and load-bearing capacity, ensuring that the material remains steady and properly aligned during the cutting process. The strong geometric design of the triangle helps distribute the weight evenly, minimizing vibrations and improving cutting precision.
Slitting part

Round slitting blades deliver ultra-clean, burr-free cuts for a premium finish.
High-speed, smooth operation boosts your production efficiency like never before.
Longer blade life means lower maintenance costs and more uptime.
Versatile and reliable, they handle everything from paper to film and foil with ease.
Color tracing

The Japanese eye mark sensor ensures ultra-precise detection for flawless cutting alignment.
Its fast response keeps up with high-speed production, boosting efficiency and accuracy.
Stable performance even with complex prints or challenging materials reduces waste and errors.
Built with advanced Japanese technology, it guarantees reliable operation and superior cutting results.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

What is the maximum roll width and weight it can handle?

The maximum cutting width is 1200mm. For smaller rolls under 50kg, we recommend using the Triangular Bracket for better stability and handling.
Is the machine easy to operate and maintain?

Yes, the machine is designed with a user-friendly interface. Blade replacement and sensor calibration are simple, and the robust components require minimal maintenance.
What safety features are included?

The machine is equipped with safety covers, emergency stop buttons, and protective sensors to ensure safe operation for the operator.
