A roll-to-sheet cutter is a machine that cuts continuous roll materials into individual sheets with precision, ensuring consistent sizes and smooth, clean edges. It can handle a wide range of materials, including paper, plastic films (such as PET and PVC), adhesive labels, non-woven and synthetic fabrics, laminated packaging materials, thin foam sheets, and aluminum foil. This versatile machine is widely used in industries like packaging, printing, textiles, and labeling for efficient and accurate cutting.

Model:
HDK-1200Z
Brand:
HDK

industial kraft paper rotary cutting machine printed paper roll to sheet cutter fully automatic reel to sheet cutter baking paper sheet cutting machine aluminum foil cutting machine customized cutting machine industrial cutting machinery printed copy paper cutting machine Specialty Paper cutting machine eva foam cutting machine

Machine Description

Specification

Machine Advantage

Machine Apply

FAQ

Industrial Eye Sensor Detecting Color Paper Cutting Machine

HDK specializes in small and medium-sized models customized for soft material manufacturers worldwide.
We offer machines with feeding widths ranging from 200mm to 1600mm, with a strong focus on unwinding and cutting systems.

Our compact models are ideal for handling small rolls, while our high-capacity machines (over 1000mm width) are capable of processing jumbo rolls up to 1000kg, meeting the needs of both small-scale and industrial-scale production.

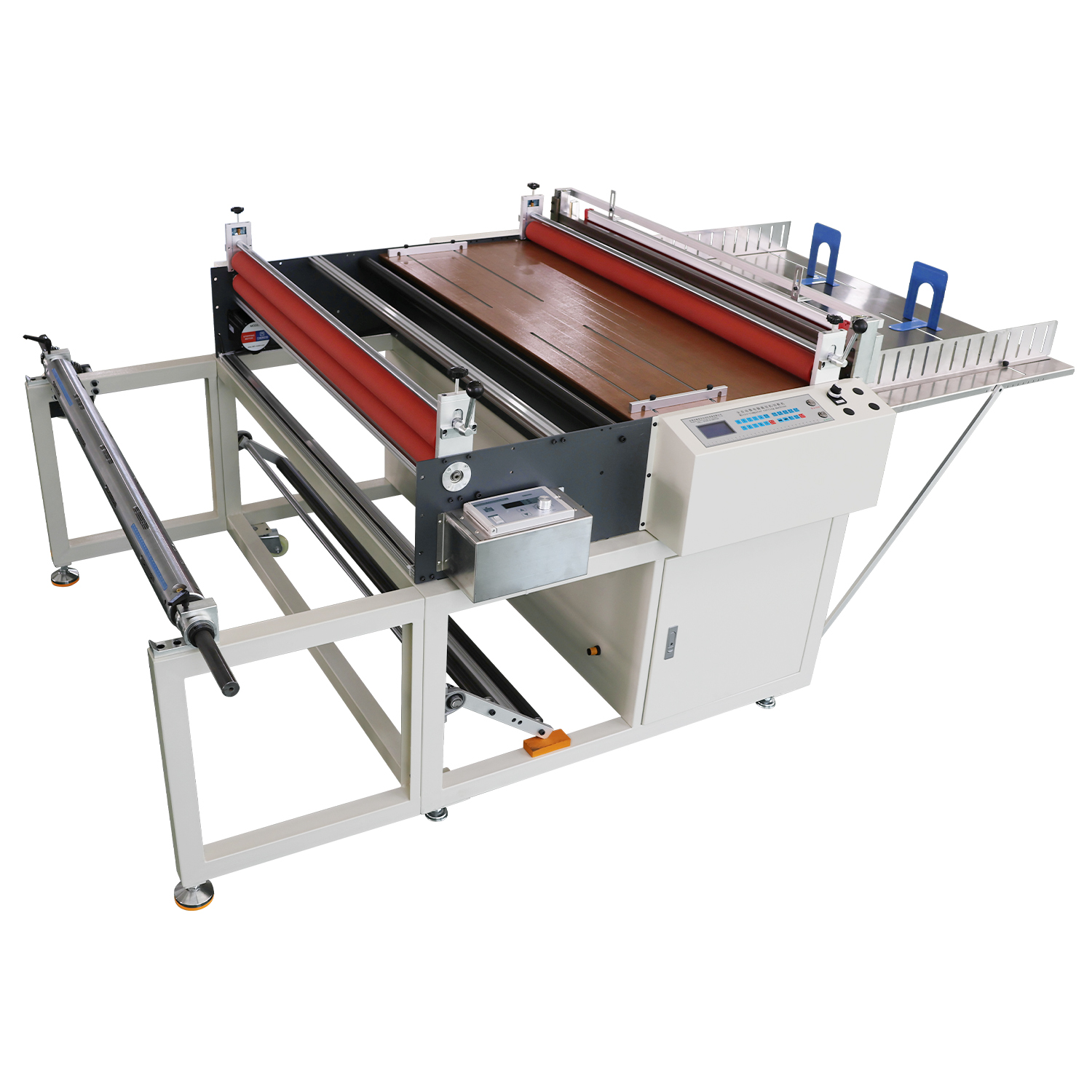

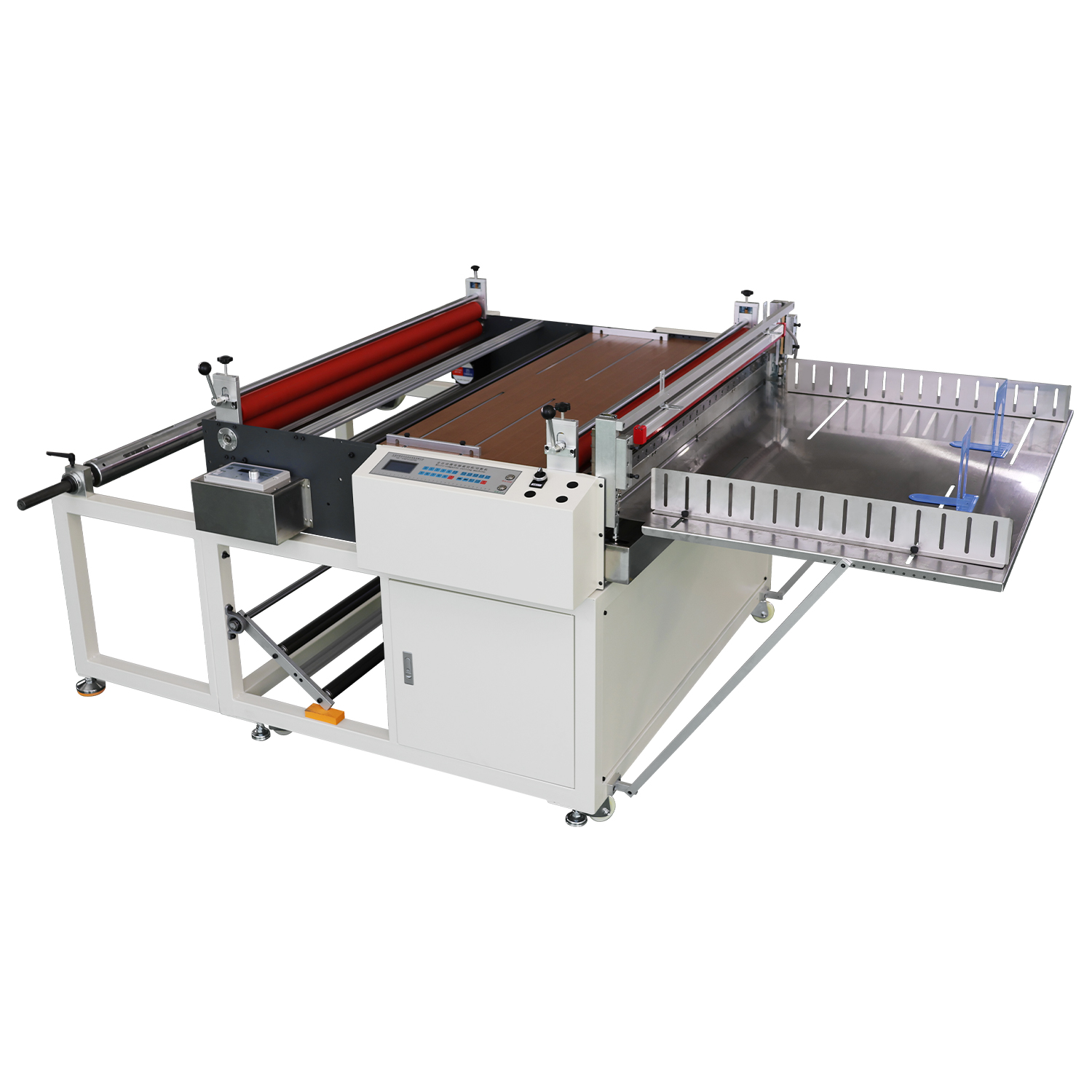

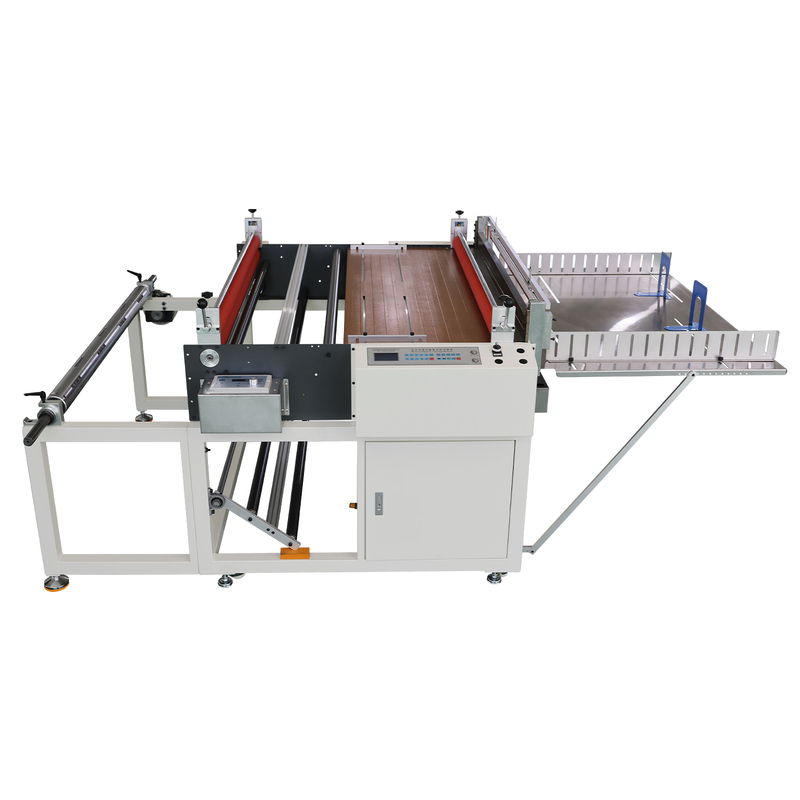

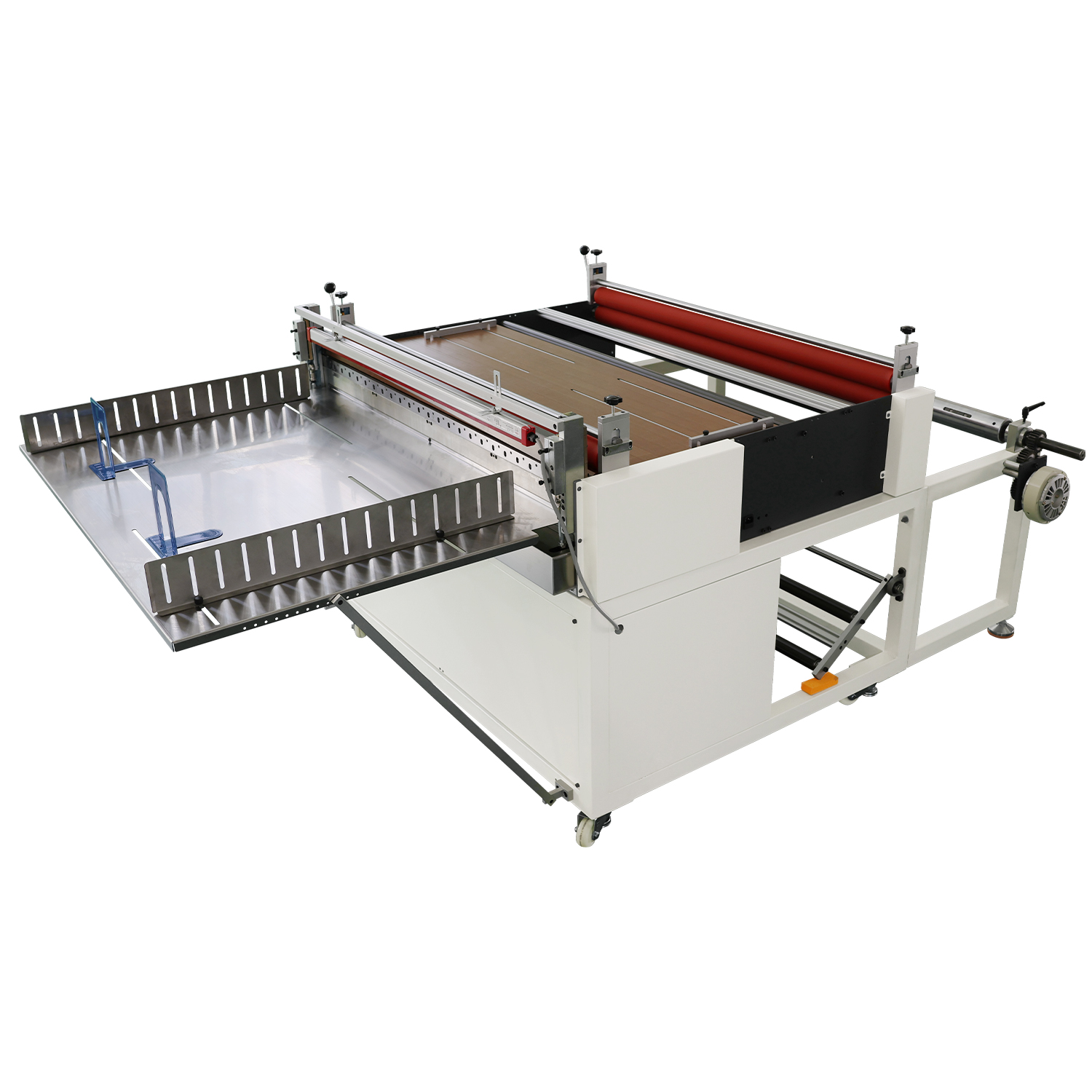

This newly designed roll-to-sheet cutter features improved structure and enhanced performance, offering precise cutting, smooth operation, and easy maintenance. Suitable for various materials including paper, film, and nonwoven, it ensures high efficiency and reliability in continuous production.

1200Z (4)

Model

HDK-1200Z

Fequency

50/60Hz

Feeding width

1200mm

Cutting speed

30-40 meters/min

Cutting precision

+-0.1mm

Feeding motor

Servo motor

Cutting motor

AC motor

Core size

76/152mm

Package

Wooden case

Net weight

400kg

Gross weight

450kg

Machine size

2330*1390*990mm

Packing size

1550*1460*1130mm

+8615711828157

Email

sonialee_haidike@outlook.com

The machine consists of four main parts: the loading part, the feeding part, the cutting part, PLD system. It greatly improves work efficiency and handling safety, especially for large or heavy rolls.

Introduction

Loading part

The magnetic powder brake provides precise and adjustable tension control during unwinding.
The air shaft is designed to quickly and securely clamp material rolls during winding or unwinding operations.
Automatic Eye tracing

It is applied to printed material, the function is detect the color and then position cutting, to ensure the high accuracy of printed material.
Cutting part

The cutting knife is made of sharp steel and uses a scissor-like up-and-down motion for quick, efficient cutting. It delivers clean, burr-free edges and operates at speeds of up to 40m per minute on high-speed machines.
PLD control system:

The PLD control system allows for precise adjustment of cutting length and speed, as well as batch quantity settings. It includes a counter to set and track the desired cutting quantity, ensuring accuracy and efficiency during production. The system supports both Chinese and English language options, and additional language customizations can be provided based on customer needs, offering greater flexibility for international users.

RAW MATERIAL

Our Roll to Sheet Cutting Machine is designed for efficiently cutting roll materials into sheets with high precision. It is widely used in industries such as packaging, printing, electronics, advertising, automotive, and medical. The machine ensures accurate cutting, high productivity, and excellent product quality.

Applicable Materials
1. Paper Materials: Coated paper, kraft paper, cardstock, self-adhesive paper, etc.
2. Film Materials: PET, PVC, PP, PE, PC, and other plastic films.
3. Foam Materials: EVA foam, sponge, double-sided adhesive tape, etc.
4. Metal Foils: Aluminum foil, copper foil, and other precision materials.
5. Composite Materials: Metallized films, release paper, thermal-sensitive materials, etc.

FAQs

What materials can this cutter handle?

It is suitable for a wide range of materials including paper, kraft paper, sticker paper, laminated film, nonwoven fabric, plastic film, and more.
Does it support both printed and blank materials?

Yes. With the optional eye mark sensor, it can precisely cut both printed materials with registration marks and plain materials.
What is production lead time?

Our standard machines have a production lead time of seven days, while custom machines require a lead time of two weeks.
