In today’s fast-paced industrial landscape, cutting machines play a critical role in ensuring accuracy, consistency, and efficiency in material processing. From packaging and printing to electronics and film production, manufacturers rely on precision cutting equipment to transform raw materials into finished products that meet exact specifications.
Among the many types of cutting systems, the roll to sheet cutting machine stands out as one of the most versatile and productive solutions. It converts continuous material rolls—such as paper, film, foil, or plastic—into uniform sheets. This technology bridges the gap between large-scale material supply and downstream processes like printing, laminating, or packaging.
Understanding how a roll to sheet cutting machine works is key to optimizing workflow and improving productivity. This article provides an in-depth explanation of its components, working process, automation technology, and selection criteria—helping you choose the right cutting machine for your production line.

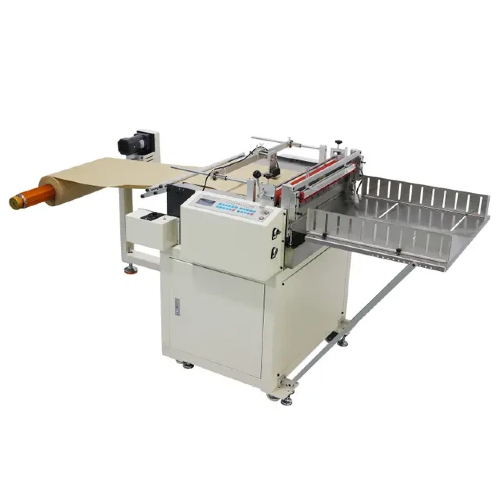

A roll to sheet cutting machine is a type of cutting machine designed to process continuous rolls of flexible materials and cut them into sheets of a defined length. Unlike manual or semi-automatic systems, this type of machine can operate continuously and automatically, ensuring stable output and precise cutting performance.
Roll-to-Roll Cutting: Keeps materials in roll form after cutting—used for film and label industries.
Sheet-to-Sheet Cutting: Processes individual sheets rather than continuous rolls—common in paper or cardboard cutting.
Roll-to-Sheet Cutting: Converts entire rolls into flat sheets ready for printing, laminating, or packaging—making it ideal for high-volume industrial use.
Typical materials processed by these machines include:
Paper and cardboard
Plastic films (PET, PE, BOPP)
Aluminum foil and laminates
Nonwoven fabrics and coated textiles
By automating the conversion process, roll to sheet cutting machines significantly reduce manual labor, waste, and production downtime.
To understand how a roll to sheet cutting machine works, we need to examine its core parts. Each component plays a specific role in ensuring material stability, accuracy, and smooth workflow.
This section holds the material roll and feeds it into the cutting machine. Equipped with pneumatic shafts or mechanical clamps, the unwinder ensures proper alignment. Advanced systems also include tension sensors and edge alignment devices that keep the material feeding straight.
As the roll moves forward, the machine’s servo-driven or pneumatic feeding system maintains consistent tension. Stable tension is essential—too tight and the material can stretch or tear; too loose and misalignment may occur.
Modern cutting machines use automatic tension control units that adapt dynamically to material resistance, ensuring uniform feeding and precise cutting every time.
The cutting machine measures the material length using encoder wheels or photoelectric sensors. These sensors track the feed distance and communicate with the control system to determine the exact cutting point.
For instance, when the material reaches the pre-set length, the control system triggers the blade for cutting. This automation guarantees consistent sheet sizes even during high-speed operations.
This is the heart of the machine. Depending on material type, cutting can be achieved by rotary blades, guillotine blades, hot knives, or pneumatic systems.
Rotary blades are ideal for thin materials like films.
Guillotine blades handle thicker materials such as cardboard or laminated sheets.
Hot knife cutters melt and seal synthetic materials like nylon or polyester.
Each cutting method ensures precision while maintaining clean, smooth edges.
After cutting, sheets are automatically stacked or conveyed for further processing. Some machines use counting sensors or pneumatic stackers to ensure the correct number of sheets per batch.
These automation features reduce manual handling and improve production efficiency.
Understanding the operational flow helps illustrate how a roll to sheet cutting machine works in real production environments.
The operator mounts the material roll on the unwinding shaft and secures it. The machine’s alignment system ensures the roll is centered and tensioned correctly.
Once the machine starts, the servo motor-driven feeding rollers pull the material forward smoothly. The feeding speed and tension are controlled automatically through sensors.
As the material travels, sensors and encoders measure its length. When the target sheet length is reached, the control system sends a command to initiate the cutting cycle.
The blade—rotary, guillotine, or hot knife—cuts the material precisely at the pre-determined position. The process is synchronized with the feed system to avoid overlap or misalignment.
The cut sheets are neatly stacked or transferred to the next production stage. Modern machines include automatic counters and conveyors for batch separation.
This entire process happens in milliseconds, making roll to sheet cutting machines ideal for continuous, high-speed operations.
Automation is the backbone of any modern cutting machine. Today’s models integrate PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) systems to ensure precision and flexibility.
The PLC manages every action—from feeding speed to cutting timing—while servo motors provide accurate positioning. This combination minimizes mechanical error and enhances cutting consistency.
Operators can easily set sheet length, speed, and quantity through an intuitive touchscreen. The system stores multiple presets, allowing quick switchovers between different materials or sizes.
High-end machines feature automatic fault detection, alerting operators of misfeeds, tension issues, or blade wear. Real-time monitoring systems provide data analytics for preventive maintenance.
Such automation reduces downtime, improves precision, and extends machine lifespan.
The performance of a cutting machine depends on multiple variables. Understanding these ensures consistent quality output.
A dull blade causes burrs or uneven edges. Regular sharpening or replacement maintains clean cuts.
Soft materials like films require rotary cutters, while thick materials like boards need guillotine blades. Choosing the wrong tool affects accuracy.
Even tension guarantees that the sheet length remains consistent throughout the run. Poor tension leads to irregular sheet sizes.
The feed speed must match the cutting speed precisely to prevent double cuts or incomplete cuts.
Static electricity, humidity, or dust can influence sensor performance and material handling, especially for lightweight films.
Different applications require different cutting machine technologies. Below is an overview of popular models:
Machine Type | Cutting Method | Suitable Material | Precision Level |
Rotary Cutting Machine | Rotary Blade | Plastic films, paper | ★★★★☆ |
Guillotine Cutter | Straight Blade | Cardboard, PET sheets | ★★★★★ |
Hot Knife Cutter | Heated Blade | Nylon, PP film | ★★★☆☆ |
Servo Roll Cutter | Servo + PLC Control | Laminates, mixed materials | ★★★★★ |
Rotary and servo cutters are preferred for high-speed operations, while guillotine systems offer exceptional accuracy for rigid materials. Hot knife cutters are best when sealing edges is required.
Implementing a roll to sheet cutting machine provides measurable improvements in quality, cost, and output:
High precision: Consistent sheet length and edge accuracy.
Automation: Reduces human error and labor requirements.
Material optimization: Minimizes waste during cutting.
Flexibility: Handles multiple material types and thicknesses.
Efficiency: Operates continuously with minimal downtime.
Scalability: Easily integrates with laminating, printing, or packaging lines.
For factories that deal with large volumes, these advantages translate into higher productivity and faster ROI.
Like all industrial equipment, a cutting machine requires regular maintenance to ensure long-term performance.
Clean blades and rollers daily to remove dust and residue.
Lubricate moving parts to prevent wear and corrosion.
Check sensors and encoders for proper calibration.
Inspect belts, gears, and bearings for signs of wear.
Problem | Possible Cause | Solution |
Uneven cutting | Blade dull or misaligned | Sharpen or realign blade |
Skewed sheets | Uneven tension or feeding | Adjust tension settings |
Static buildup | Dry environment | Use anti-static bars |
Missed cuts | Faulty sensor signal | Recalibrate or replace sensors |
Proper care minimizes downtime and extends machine lifespan, ensuring consistent cutting precision.
The roll to sheet cutting machine is widely adopted in multiple industries due to its adaptability:
Used for cutting films, foils, and laminates for flexible packaging applications.
Ideal for preparing sheets of paper, vinyl, or adhesive material for printing and die-cutting.
Processes PET and insulating films for electrical components.
Cuts soft materials used in medical, hygiene, or upholstery products.
Used to prepare reflective, protective, or adhesive films for architectural applications.
Its versatility makes the cutting machine an essential piece of equipment in nearly every material conversion industry.
Selecting the correct cutting machine depends on your production goals and material needs.
Material Type: Film, paper, or laminate require different cutting methods.
Production Volume: Higher output demands fully automatic systems.
Precision Needs: Evaluate required cutting tolerance (±0.1 mm for HDK’s machines).
Automation Level: Compare manual, semi-automatic, and fully automatic systems.
Budget and ROI: Factor in long-term savings from reduced waste and labor.
A trusted manufacturer like HDK Automation Equipment Co., Ltd. offers customized solutions with advanced servo control, ensuring both precision and reliability.
Safety is paramount in operating industrial cutting machines. Modern systems include multiple protection features:
Emergency stop buttons and light curtains.
Overload and overheat protection sensors.
Guarded blade housings to prevent contact.
Automatic stop when a malfunction is detected.
Operators should receive professional training to understand control parameters, machine behavior, and maintenance routines. Following standard operating procedures ensures both safety and machine longevity.
The future of cutting machines lies in digitalization and smart automation.
AI-driven cutting optimization: Systems that self-adjust cutting speed and tension in real time.
Vision alignment technology: Cameras ensure perfect edge cutting even for transparent materials.
Energy-efficient servo drives: Reduce power consumption while maintaining high performance.
IoT connectivity: Enables remote monitoring and data-driven maintenance.
Integration with robotic handling: Creates a seamless, automated production line.
As manufacturing continues to evolve, next-generation cutting machines will deliver faster, smarter, and greener solutions.
A roll to sheet cutting machine plays a vital role in today’s manufacturing industry, offering precise, efficient, and reliable material conversion for applications such as packaging, printing, and film processing. By understanding its working principles, components, and automation systems, manufacturers can significantly enhance cutting accuracy, minimize material waste, and boost overall productivity.
